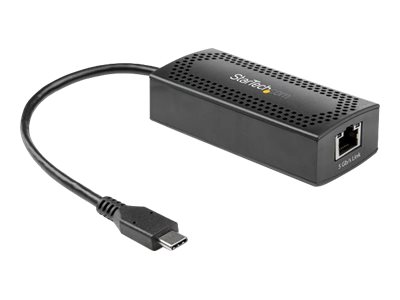

StarTech.com 5GbE USB C Network Adapter - NBASE-T NIC - USB 3.0 Type C 2.5 GbE /5 GbE Multi Speed Gigabit Ethernet - USB 3.1 to RJ45/LAN - network adapter - USB-C - 5GBase-T x 1 + USB-C 3.0
StarTech.com 5GbE USB C Network Adapter - NBASE-T NIC - USB 3.0 Type C 2.5 GbE /5 GbE Multi Speed Gigabit Ethernet - USB 3.1 to RJ45/LAN - network adapter - USB-C - 5GBase-T x 1 + USB-C 3.0
- Price:
$100.99
- Availability: In stock
- Mfr #: US5GC30
- UNSPSC #: 43201404
- Item #: 007528303
- Add to Shopping List
Need Help?
Contact your Zones Account Manager or call 800.408.9663
Processor / Memory
| Processor | Aquantia AQC111U |
Miscellaneous
| Cables Included | 1 x USB 3.0 Type C cable (integrated) |
| Compliant Standards | FCC, RoHS, WEEE, REACH |
| Color | Black |
Networking
| Ports | 5GBase-T x 1 + USB-C 3.0 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 5GBase-T, Ethernet 2.5GBase-BX |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 5 Gbps |
| Capacity | Jumbo frame size: 16000 |
| Status Indicators | Link/activity |
| Features | Full duplex capability, auto-uplink (auto MDI/MDI-X), Jumbo Frames support, promiscuous mode |
| Compliant Standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3bz |
Dimensions & Weight
| Width | 1.5 in |
| Height | 0.9 in |
| Length | 1 ft |
| Weight | 2.86 oz |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
General
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB-C |
Expansion / Connectivity
| Interfaces | 1 x 5GBase-T - RJ-45 - receptacle ¦ 1 x USB-C - 24 pin USB-C - plug |
Dimensions & Weight (Shipping)
| Shipping Width | 5.6 in |
| Shipping Depth | 6.7 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 3.81 oz |
Software / System Requirements
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2019, Apple MacOS X 10.11 - 10.14, Linux Kernel 4.4 - 4.19 LTS versions |
