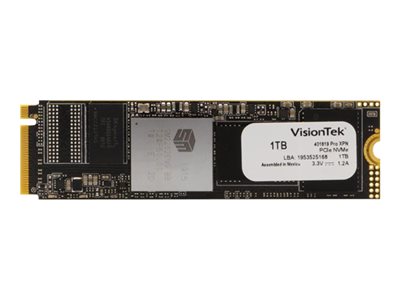

1TB VISIONTEK PRO XPN M.2 NVME
1TB VISIONTEK PRO XPN M.2 NVME
- Price:
$204.99
- Availability:
- Mfr #: 901307
- UNSPSC #: 43201830
- Item #: 007563325
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | RoHS, IEEE 1667 |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
General
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | AES |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| Features | Temperature sensor, StaticDataRefresh Technology, Garbage Collection technology, End-to-end data path protection, single-level cell (SLC), LDPC error correction, 3D NAND Technology, NVM Express (NVMe) deallocate support |
| Width | 0.9 in |
| Depth | 3.1 in |
| Weight | 0.25 oz |
Expansion & Connectivity
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| Compatible Bay | M.2 2280 |
Performance
| SSD Endurance | 2139 TB |
| Internal Data Rate | 3400 MBps (read) / 2900 MBps (write) |
| 4KB Random Read | 320000 IOPS |
| 4KB Random Write | 340000 IOPS |
Reliability
| MTBF | 1,500,000 hours |
Power
| Power Consumption | 5.7 Watt (active) ¦ 0.72 Watt (idle) |
