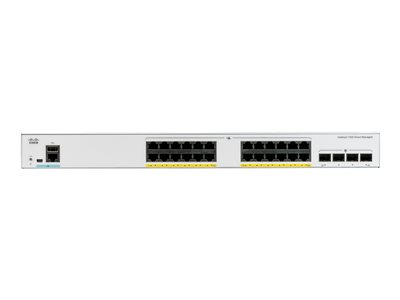

Cisco Catalyst 1000-24FP-4X-L - switch - 24 ports - managed - rack-mountable

Cisco Catalyst 1000-24FP-4X-L - switch - 24 ports - managed - rack-mountable

  • Price:
    $3,223.99
  • Availability:  In stock
  • Mfr #:  C1000-24FP-4X-L
  • UNSPSC #:  43222612
  • Item #:  007646377
  • Add to Shopping List
  • cnet cat code #:  10050201
Need Help? Contact your Zones Account Manager or call 800.408.9663
  •  Product Description Cisco Catalyst 1000-24FP-4X-L - switch - 24 ports - managed - rack-mountable
  •  Device Type Switch - 24 ports - managed
  •  Enclosure Type Rack-mountable
  •  Subtype Gigabit Ethernet
  •  Ports 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
  •  Power Over Ethernet (PoE) PoE+
  •  PoE Budget 370 W
  •  Performance Forwarding bandwidth: 64 Gbps Switching bandwidth: 128 Gbps Forwarding rate (64-byte L3 packets): 41.67 Mpps
  •  Capacity Unicast MAC addresses: 15360 IPv4 unicast direct routes: 542 IPv4 unicast indirect routes: 256 IPv6 unicast direct routes: 414 IPv6 unicast indirect routes: 128 IPv4 routes (static): 16 IPv6 routes (static): 16 IPv4 routes (Multicast): 1024 IPv6 groups (Multicast): 1024 IPv4/MAC security ACEs: 600 IPv6 security ACEs: 600 Active VLANs: 256 VLAN IDs: 4094 STP instances: 64 SPAN sessions: 4 MTU-L3 packet: 9198 byte
  •  Jumbo Frame Support 10240 bytes
  •  Routing Protocol IGMP, MLDv2, MLD, MSTP, RSTP, STP
  •  Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
  •  Features BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
  •  Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
  •  Power AC 120/230 V (50 - 60 Hz)
  •  Dimensions (WxDxH) 17.5 in x 13.6 in x 1.7 in
  •  Weight 10.14 lbs
  •  Manufacturer Warranty Limited lifetime warranty
