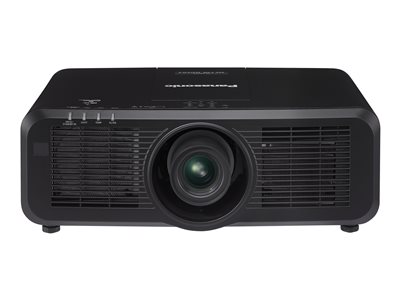

Panasonic PT-MZ770LBU7 - 3LCD projector - no lens - LAN - black
Panasonic PT-MZ770LBU7 - 3LCD projector - no lens - LAN - black
- Price:
$6,966.99
- Availability:
- Mfr #: PT-MZ770LBU7
- UNSPSC #: 45111609
- Item #: 007690230
- Add to Shopping List
Need Help?
Contact your Zones Account Manager or call 800.408.9663
Projector
| Image Size | 40.2 in - 400 in |
| Uniformity | 90 % |
| Resolution | WUXGA - WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Video Bandwidth | 162 MHz |
| Display Format | 2,304,000 pixels (1920 x 1200) x 3 |
| Color Support | 16.8 million colors |
| Max Sync Rate (V x H) | 100 Hz x 91 kHz |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hour(s) |
| Controls & Adjustments | Keystone correction, lens shift dial (horizontal), lens shift dial (vertical) |
| Features | High-bandwidth Digital Content Protection System (HDCP), Daylight View Technology, Deep Color, PJlink, DICOM Simulation Mode, AMX Device Discovery, Direct Power Off, Detail Clarity Processor 4, 360° projection, Crestron Connected, Digital Link, Eco Mode, SOLID SHINE Laser Technology, Quick On/Off, Extron IPLink certified |
Miscellaneous
| Included Accessories | 2 x AAA batteries, wireless / wired remote control, double packing case |
| Security Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | IEC 62087:2008, ISO/IEC 21118:2012, HDCP 2.2 |
Dimensions & Weight
| Width | 22 in |
| Depth | 16.9 in |
| Height | 8.1 in |
| Weight | 35.71 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Sound Emission | 35 dB |
| Sound Emission (Economic Mode) | 28 dB |
General
| Device Type | 3LCD projector - 1080p |
| Networking | Ethernet |
| Enclosure Color | Black |
Video Input
| TV System | NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60 |
| Video Interfaces | HDMI, composite video, RGB, DIGITAL LINK |
| Video Modes | 480p, 480i, 525i, 525p, 625p, 625i, 576i, 576p, 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 750/50p, 750/60p, 1125/60i, 1125/60p, 1125/50i, 1125/24p, 1125/25p, 1125/30p, 1125/50p, 1080/24sF, 1125/24sF |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
Lens
| Type | No lens |
| Keystone Correction Direction | Horizontal, vertical |
| Lens Shift Type | Powered |
| Lens Shift Direction | Horizontal, vertical |
Speakers
| Type | Integrated |
| Sound Output Mode | Mono |
| Output Power / Channel | 10 Watt |
| Speakers | 1 x mixed channel - 1.6 in |
Expansion / Connectivity
| Interfaces | 1 x RGB input - BNC x 5 ¦ 1 x USB ¦ 1 x network - RJ-45 ¦ 1 x USB (power only) ¦ 1 x RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x DIGITAL LINK - RJ-45 ¦ 1 x composite video input - RCA ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x remote control input - 9 pin D-Sub (DB-9) ¦ 1 x RGB output - 15 pin HD D-Sub (HD-15) ¦ 1 x serial RS-232 input - 9 pin D-Sub (DB-9) (management) ¦ 2 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-in - RCA x 2 ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x remote control input - mini-phone stereo 3.5 mm (management) |
Power
| Power Source | AC |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 570 Watt |
| Power Consumption Stand by | 0.5 Watt |
Software / System Requirements
| Software Included | Logo Transfer Software, Multi Projector Monitoring & Control Software, Wireless Manager Mobile Edition, Plug and Share, Smart Projector Control App, Wireless Projector App |
