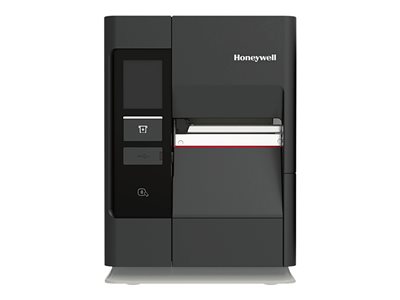

Honeywell PX940V - Verifier Version - label printer - B/W - direct thermal / thermal transfer
Honeywell PX940V - Verifier Version - label printer - B/W - direct thermal / thermal transfer
- Price:
$3,462.99
- Availability:
- Mfr #: PX940V30100000200
- UNSPSC #: 43212105
- Item #: 007704627
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
Features | Foldable clear media door |
Compliant Standards | FCC Class A certified, EN55022 Class A |
Processor
Processor | ARM Cortex-A9 1 GHz |
Networking
Networking | Print server |
Dimensions & Weight
Width | 10.3 in |
Depth | 19.9 in |
Height | 15.7 in |
Weight | 50.71 lbs |
Environmental Standards
ENERGY STAR | Yes |
Printer
Print Speed | Up to 720.5 inch/min - max speed - 300 dpi |
Built-in Devices | 3.5 inch LCD touch screen |
Connectivity Technology | Wired |
Interface | USB 2.0, LAN, NFC, USB 2.0 host, RS232 |
Max Resolution (B&W) | 300 dpi |
Language Simulation | ZPL II, Intermec Printer Language (IPL), Extensible Mark-up Language (XML), DPL, ZSim2 |
Features | Realtime clock, Black Mark sensor, gap sensor, integrated label verification, dual label stop sensor |
Barcodes | UCC/EAN-128, ISBT 128, HIBCC, UPC, Postnet, AIAG, OGMARS, GM1724 |
Software / System Requirements
Software Included | InterDriver Windows, CUPS driver for Linux, Honeywell Device Types, Honeywell Label Design and Print Package |
Media Handling
Media Type | Labels, continuous labels, non-laminated labels |
Max Media Size | Roll (0.79 in - 4.49 in) |
Min Media Size (Custom) | 0.118 in |
Media Sizes | Roll (0.79 in - 4.49 in) |
Max Printing Width | 4.25 in |
Max Printing Length | 7 ft |
Media Thickness Range | 0.003 in - 0.01 in |
Roll Maximum Outer Diameter | 8.4 in |
Roll Core Diameter | 3 in |
Media Feeders | 1 x manual - Roll (4.5 in) |
Environmental Parameters
Min Operating Temperature | 41 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 20 - 85% (non-condensing) |
Flash Memory
Flash Memory | 256 MB |
General
Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
Expansion / Connectivity
Connections | 2 x USB 2.0 host - 4 pin USB Type A ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) |
Power
Power Device | Power supply - internal |
Voltage Required | AC 100 - 240 V |
Frequency Required | 45 - 65 Hz |
Power Consumption Operational | 200 Watt |
Power Factor Correction | Yes |
RAM
RAM Installed (Max) | 1 GB |
Technology / Form Factor | DDR3 SDRAM |
