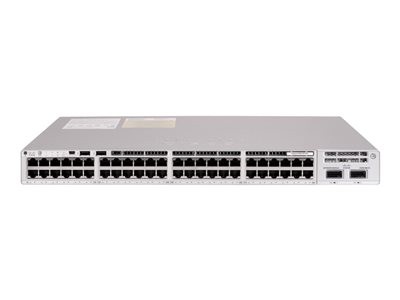

Cisco Catalyst 9200 - Network Essentials - switch - 48 ports - smart - rack-mountable

Cisco Catalyst 9200 - Network Essentials - switch - 48 ports - smart - rack-mountable

  • Price:
    $5,662.99
  • Availability:  In stock
  • Mfr #:  C9200-48PXG-E
  • UNSPSC #:  43222612
  • Item #:  007741484
  • Add to Shopping List
  • cnet cat code #:  10050202
Need Help? Contact your Zones Account Manager or call 800.408.9663
  •  Product Description Cisco Catalyst 9200 - Network Essentials - switch - 48 ports - smart - rack-mountable
  •  Device Type Switch - 48 ports - L3 - smart - stackable
  •  Enclosure Type Rack-mountable
  •  Subtype Gigabit Ethernet
  •  Ports 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G/10GBase-T
  •  Power Over Ethernet (PoE) PoE+
  •  PoE Budget 740 W
  •  Performance Stacking bandwidth: 160 Gbps Switching bandwidth: 400 Gbps Switching capacity with stacking: 580 Gbps Forwarding rate: 297.61 Mpps Forwarding rate with stacking: 431 Mpps
  •  Capacity QoS scale entries: 1000 ACL scale entries: 1600 IPv4 routing table entries: 4000 IPv6 routing table entries: 2000 Packet buffer size: 6 MB VLAN IDs: 4096 Switched virtual interfaces (SVIs): 1000 Flexible NetFlow entries: 16000
  •  MAC Address Table Size 32000 entries
  •  Jumbo Frame Support 9198 bytes
  •  Routing Protocol OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
  •  Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
  •  Features ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
  •  Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
  •  Power AC 120/230 V (50 - 60 Hz)
  •  Power Redundancy Optional
  •  Dimensions (WxDxH) 17.5 in x 15.4 in x 1.7 in
  •  Weight 11.99 lbs
  •  Manufacturer Warranty Limited lifetime warranty
