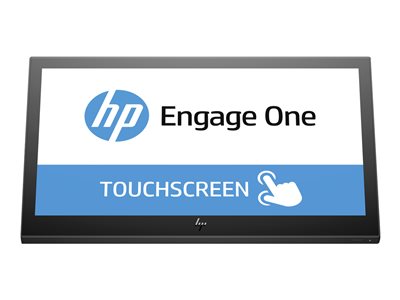

HP Engage One 145 - all-in-one - Core i5 7300U 2.6 GHz - 8 GB - SSD 256 GB - LED 14"

HP Engage One 145 - all-in-one - Core i5 7300U 2.6 GHz - 8 GB - SSD 256 GB - LED 14"

  • Price:
    $2,672.99
  • Availability:
  • Mfr #:  3G427US#ABA
  • UNSPSC #:  43211508
  • Item #:  007744907
  • Add to Shopping List
  • cnet cat code #:  10010101
Need Help? Contact your Zones Account Manager or call 800.408.9663
Cache Memory
Installed Size 3 MB
Cache Per Processor 3 MB
Miscellaneous
Theft/Intrusion Protection Security lock slot (cable lock sold separately)
Security Slot Type Kensington security slot
Compliant Standards WEEE 2002/96/EC, RoHS 2011/65/EC
Networking
Ethernet Controller Realtek RTL8153
Wireless LAN Supported Yes
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2
Remote Management Protocol SNMP 2
Features Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac, Bluetooth 4.2
Dimensions & Weight
Dimensions & Weight Details 13.2 in - 0.7 in - 8.5 in - 3 lbs - without stand
Width 13.2 in
Depth 0.7 in
Height 8.5 in
Weight 3.04 lbs
Audio Output
Sound Output Mode Stereo
Max Sampling Rate 192 kHz
Compliant Standards High Definition Audio
Speakers Included 1 x amplifier 2 x right / left channel
Hard Drive
Type SSD - M.2 2280
Capacity 1 x 256 GB
Graphics Controller
Graphics Processor Intel HD Graphics 620 Dynamic Video Memory Technology
Video Interfaces USB-C
HDCP Compatible Yes
Monitor
Monitor Type LED
Touchscreen Yes (multi-touch)
Diagonal Size 14"
Native Resolution 1920 x 1080 (Full HD)
Widescreen Display Yes
Image Aspect Ratio 16:9
Horizontal Viewing Angle 178
Vertical Viewing Angle 178
Pixel Pitch 0.161 mm
Response Time 25 ms
Image Brightness 500 cd/m
Image Contrast Ratio 800:1
Monitor Features Projected Capacitive Touch (PCT) technology, Full HD ultra wide-viewing angle (UWVA) anti-glare
Storage Controller
Type 1 x SATA
Controller Interface Type SATA 6Gb/s
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 50 F
Max Operating Temperature 104 F
Humidity Range Operating 20 - 85%
General
Type Point of sale terminal
Product Form Factor All-in-one
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Image Color Disclaimer The displayed product image may be a different color
Localization Language: English / region: United States
Processor / Chipset
CPU Intel Core i5 (7th Gen) 7300U / 2.6 GHz
Max Turbo Speed 3.5 GHz
Number of Cores Dual-Core
CPU Qty 1
Max CPU Qty 1
CPU Upgradability Not upgradable
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
Card Reader
Type Card reader
Supported Flash Memory Cards microSD
Expansion / Connectivity
Slots 1 (total) / 0 (free) x M.2 Card - 2230 1 (total) / 0 (free) x M.2 Card - 2280
Interfaces 4 x USB 3.0 1 x PoweredUSB 2.0 (24 V) 2 x serial (powered) 2 x USB-C (one of them is power port) 1 x LAN (Gigabit Ethernet) 1 x cash drawer 1 x headphones/microphone 2 x PoweredUSB 2.0 (12 V)
Power
Device Type Power adapter
Nominal Voltage AC 120/230 V (50/60 Hz)
Power Factor Correction Yes (active)
Operating System / Software
OS Provided Windows 10 IoT Enterprise 2019 LTSC Value 64-bit Edition English
RAM
Installed Size 8 GB / 32 GB (max)
Technology DDR4 SDRAM - non-ECC
Form Factor SO-DIMM 260-pin
Slots 2 (total)
Features Dual channel memory architecture
Optical Storage
Type No optical drive
