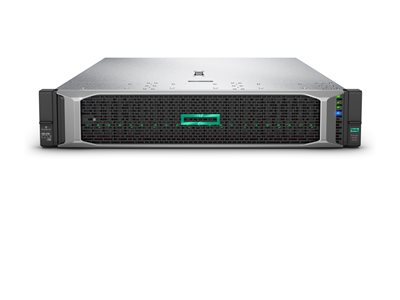

HPE ProLiant DL380 Gen10 SMB Networking Choice - rack-mountable - Xeon Gold 5218R 2.1 GHz - 32 GB - no HDD
HPE ProLiant DL380 Gen10 SMB Networking Choice - rack-mountable - Xeon Gold 5218R 2.1 GHz - 32 GB - no HDD
- Price:
$3,456.99
- Availability:
- Mfr #: P24844-B21
- UNSPSC #: 43211501
- Item #: 007764311
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | L3 cache - 27.5 MB |
| Cache Per Processor | 27.5 MB |
Miscellaneous
| Included Accessories | Cable management arm, 4 standard fans, SFF Easy install rails |
| Compliant Standards | WEEE, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1 |
Networking
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | HPE 562FLR-SFP+ |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 5 |
| Features | Wake on LAN (WoL), PXE support |
Dimensions & Weight
| Width | 17.5 in |
| Depth | 28.8 in |
| Height | 3.4 in |
| Weight | 32.54 lbs |
Environmental Standards
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 3.0 |
Hard Drive
| Type | No HDD |
Graphics Controller
| Video Memory | 16 MB |
| Video Interfaces | VGA |
Monitor
| Monitor Type | None. |
Sustainability Information
| ENERGY STAR Version | 3.0 |
Storage Controller
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | HPE Smart Array S100i |
| Channel Qty | 14 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
General
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: Worldwide |
Processor / Chipset
| Chipset Type | Intel C621 |
Expansion / Connectivity
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x microSD Card (internal) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 0 (free) x FlexibleLOM |
| Interfaces | 3 x USB 3.0 (1 front, 2 rear) ¦ 1 x VGA ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 1 x HPE iLO (service port) |
Power
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 800 Watt |
Operating System / Software
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
RAM
| Installed Size | 32 GB / 1.5 TB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2933 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 23 (empty) |
| Features | Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory |
| Configuration Features | 1 x 32 GB |
| RAM Supported | 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC ¦ 6 TB - HPE Persistent Memory - Optane DC Persistent |
Optical Storage
| Type | No optical drive |
