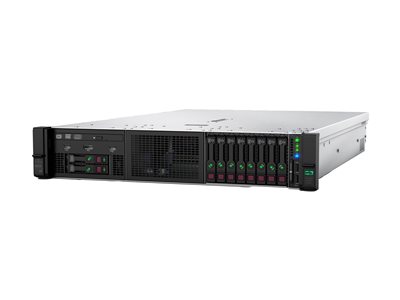

DL380 GEN10 6226R 1P 32G NC 8SFF SVR
DL380 GEN10 6226R 1P 32G NC 8SFF SVR
- Price:
$5,963.99
- Availability:
- Mfr #: P24846-B21
- UNSPSC #: 43211501
- Item #: 007764334
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | L3 cache - 22 MB |
| Cache Per Processor | 22 MB |
Miscellaneous
| Included Accessories | Cable management arm, 4 standard fans, SFF Easy install rails |
| Compliant Standards | AES, TLS v1.2, low halogen, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1 |
Networking
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | HPE 562FLR-SFP+ |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 5 |
| Features | Wake on LAN (WoL), PXE support |
Dimensions & Weight
| Width | 17.5 in |
| Depth | 28.8 in |
| Height | 3.4 in |
| Weight | 32.54 lbs |
Environmental Standards
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 3.0 |
Hard Drive
| Type | No HDD |
Graphics Controller
| Video Memory | 16 MB |
| Video Interfaces | VGA |
Monitor
| Monitor Type | None. |
Sustainability Information
| ENERGY STAR Version | 3.0 |
Storage Controller
| Type | 1 x RAID - PCIe 3.0 x4 |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | HPE Smart Array S100i SR Software RAID |
| Channel Qty | 14 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
General
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Built-in Devices | LED panel |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: Worldwide (excluding China, Japan) |
Processor / Chipset
| CPU | Intel Xeon Gold 6226R |
| Clock Speed | 2.9 GHz |
| Max Turbo Speed | 3.9 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| CPU Socket | FCLGA3647 Socket |
| Chipset Type | Intel C621 |
Expansion / Connectivity
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 0 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x microSD Card (internal) |
| Interfaces | 1 x VGA ¦ 2 x LAN (10Gigabit Ethernet) (SFP+) ¦ 1 x HPE iLO - RJ-45 ¦ 3 x USB 3.0 (1 front, 2 rear) |
Power
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
Operating System / Software
| OS Certified | CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS |
RAM
| Installed Size | 32 GB (installed) / 1.5 TB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 2933 MHz |
| Rated Memory Speed | 2933 MHz |
| Memory Specification Compliance | PC4-23466 |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 23 (empty) |
| Features | Registered, Online Spare Memory, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, 6-channel memory architecture |
| Configuration Features | 1 x 32 GB |
| RAM Supported | 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC ¦ 6 TB - HPE Persistent Memory - Optane DC Persistent |
Optical Storage
| Type | No optical drive |
