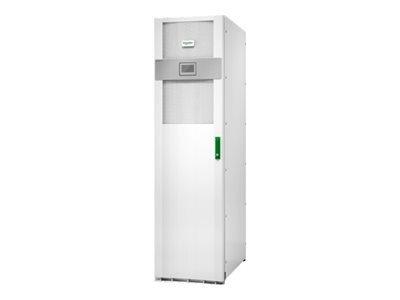

Galaxy VS UPS 20kW 208V with N+1 power module, for 5 smart modular 9Ah
Galaxy VS UPS 20kW 208V with N+1 power module, for 5 smart modular 9Ah
- Price:
$25,153.99
- Availability:
- Mfr #: GVSUPS20KR0B5FS
- UNSPSC #: 39121006
- Item #: 007862227
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Features | Touch screen interface, audible alarm, built-in static bypass, overload protection, touch screen LCD display, visible alarm, VRLA battery support |
| Compliant Standards | FCC Part 15 A, EN 62040-1-1, EN 62040-2, CSA C22.2 No. 107.3, IP20, EN 62040-3, OSHPD, UL 1778 5th edition |
Networking
| Remote Management Interface | Ethernet |
| Remote Management Protocol | SNMP, Modbus |
Dimensions & Weight
| Width | 21.7 in |
| Depth | 33.3 in |
| Height | 77.6 in |
| Weight | 551.15 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year - on-site |
Battery
| Type | Expandable |
| Technology | Lead acid |
| Capacity | 9 Ah |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 54 dBA |
General
| Device Type | UPS - external |
| Bundled Services | Start-Up Service 5X8 |
| Color | White, RAL 9003 |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 200/208/220 V |
| Input Voltage Range | AC 177 - 239 V |
| Frequency Provided | 50/60 Hz ± 0.1% |
| Input Wiring | 3-phase |
| Frequency Required | 40 - 70 Hz |
| Output Voltage | AC 200/208/220 V ± 3% - 50/60 Hz |
| Power Capacity | 20 kW / 20000 VA |
| Output Waveform | Sinewave |
| Efficiency | 94.7% at 50% Load, 95.5% at 100% Load, 92.8% at 25% Load, 95.3% at 75% Load |
| Power Factor (PF) | 0.99 |
Expansion / Connectivity
| Interfaces | Management (Ethernet) - RJ-45 |
| Expansion Slots | SmartSlot |
Dimensions & Weight (Shipping)
| Shipping Width | 29.7 in |
| Shipping Depth | 39.8 in |
| Shipping Height | 82 in |
