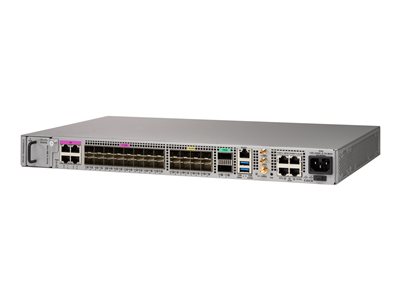

Cisco Network Convergence System 540 - router - rack-mountable
Cisco Network Convergence System 540 - router - rack-mountable
- Price:
$24,998.99
- Availability:
- Mfr #: N540X-16Z4G8Q2C-A
- UNSPSC #: 43232907
- Item #: 007868272
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Dimensions & Weight
| Width | 17.3 in |
| Depth | 11 in |
| Height | 1.7 in |
| Weight | 12.13 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - advance hardware replacement - 1 year - response time: 10 days |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
General
| Device Type | Router |
| Enclosure Type | Side to side airflow rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet |
| Performance | Performance: 300 Mpps |
| Jumbo Frame Support | Yes |
| Network / Transport Protocol | RSVP, DHCP |
| Routing Protocol | IS-IS, VRRP, OSPFv2, PIM-SM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, ECMP, MLDv2, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD), RSVP, Two-Way Active Measurement Protocol (TWAMP) |
| Remote Management Protocol | SNMP |
| Authentication Method | Secure Shell (SSH), TACACS+ |
| Features | VLAN support, WRED, QoS, LLDP support, DHCP relay, LACP, NetFlow, MIB, VRF, 2 fans, LDP, EVPN, iPXE, FFR, AAA, VOQ, L2VPN support, ZTP, SPAN, IRB, ERSPAN, T-LDP, Q-in-Q tunneling, LFA, LAG, BVI, MPLS LSR support, IP unicast, RPM, CDP, BD, EFP, BGP-LU |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), ITU-T G.8032, IEEE 1588-2008, ITU-T G.8265.1, ITU-T G.8275.1, ITU-T G.8273.2, ITU-T G.8275.2, MEF 3.0, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS 6/6, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, GR-1089-CORE, VCCI Class A, GR-63-CORE, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN 61000-4, AS/NZS CISPR22 Class A, ETSI EN 300 019-2-3, ETSI EN 300 019-1-2, ETSI EN 300 019-3-2, ETSI EN 300 753, ETS/EN 300 119 Part 4 |
| Processor | 1 x 1.7 GHz |
| RAM | 8 GB |
| Hard Drive | 32 GB |
| Built-in Devices | GNSS receiver |
Expansion / Connectivity
| Interfaces | 16 x 10Gb Ethernet / 1Gb Ethernet ¦ 4 x 1000Base-T - RJ-45 ¦ 8 x 1Gb Ethernet / 10Gb Ethernet / 25Gb Ethernet ¦ 2 x 40Gb Ethernet / 100Gb Ethernet |
Power
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Installed Qty | 1 (installed) / 1 (max) |
| Voltage Required | AC 100/230 V (50/60 Hz) |
