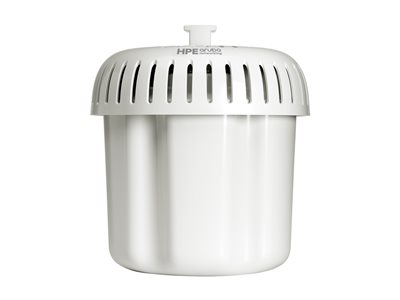

ARUBA AP-575 US OUTDOOR 11AX AP
ARUBA AP-575 US OUTDOOR 11AX AP
- Price:
$2,176.99
- Availability:
- Mfr #: R4H18A
- UNSPSC #: 81111812
- Item #: 007870731
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Internet of Things (IoT)
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
Miscellaneous
| Included Accessories | Mounting bracket |
| Compliant Standards | CB, UL 2043, FCC, EN 60601-1-2, cTUVus, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950 |
Networking
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 4.8 Gbps ¦ Aggregate throughput: 3 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 512 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 16 |
| Status Indicators | System, status |
| Features | Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Trusted Platform Module (TPM), reset button, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, Orthogonal Frequency Division Multiple Access (OFDMA), Target Wait Time (TWT) |
| Encryption Algorithm | SSL, WPA, WPA2, WPA3 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
General
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Width | 9.1 in |
| Depth | 9.4 in |
| Height | 10.6 in |
| Weight | 5.29 lbs |
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 2 x antenna ¦ 1 x console - USB-C |
Power
| Power Over Ethernet (PoE) Supported | PoE |
Antenna
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Gain Level | 4.6 dBi |
Software / System Requirements
| OS Required | ArubaOS, InstantOS |
