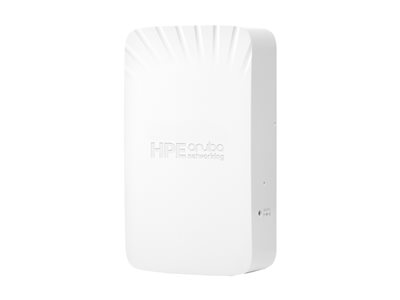

HPE Aruba AP-505H (US) Unified Hospitality - wireless access point

HPE Aruba AP-505H (US) Unified Hospitality - wireless access point

  • Price:
    $553.99
  • Availability:
  • Mfr #:  R3V48A
  • UNSPSC #:  81111812
  • Item #:  007870754
  • Add to Shopping List
  • cnet cat code #:  10070104
Need Help? Contact your Zones Account Manager or call 800.408.9663
Internet of Things (IoT)
Internet of Things (IoT) Compatible Yes
Communications Technology Bluetooth Low Energy (LE), Zigbee
Miscellaneous
Compliant Standards FCC, EN 60601-1-2, EN 60601-1-1, IEC60950/EN60950, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, ETS 300 019 Class 2.3, ETS 300 019 Class 1.2, SIG, IEC/EN 62368-1
Pricing Type BTO
Networking
Form Factor In-ceiling
Connectivity Technology Wireless
Data Transfer Rate 1.2 Gbps
Line Coding Format CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax
Spread Spectrum Method OFDM, DSSS, OFDMA
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum data rate (2.4 GHz): 287 Mbps Maximum data rate (5 GHz): 1.2 Gbps Aggregate throughput: 1.5 Gbps
Capacity Wireless clients per Wi-Fi radio: 256 BSSIDs per radio: 16 OFDMA units: 8
Status Indicators Port status, power, system, status, PoE, radio
Features Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), IPSec Virtual Private Network (VPN), Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Virtual Mobility Controller mode, Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT), Advanced IoT Coexistence (AIC)
Encryption Algorithm SSL, WPA, WPA2, WPA3-Enhanced Open, WPA2-MPSK
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature 32 F
Max Operating Temperature 104 F
Humidity Range Operating 5 - 93% (non-condensing)
General
Device Type Wireless access point
Width 3.4 in
Depth 1.9 in
Height 5.9 in
Weight 12.7 oz
Expansion / Connectivity
Interfaces 4 x 1000Base-T - RJ-45 1 x HPE Smart Rate - RJ-45 1 x USB 2.0 - Type A 1 x console - micro-USB
Dimensions & Weight (Shipping)
Shipping Width 4.4 in
Shipping Depth 2.1 in
Shipping Height 6.6 in
Shipping Weight 15.87 oz
Power
Power Over Ethernet (PoE) Supported PoE
Power Consumption Operational 6 Watt
Antenna
Antenna Internal
Antenna Qty 2
Directivity Directional
Gain Level 5.4 dBi
Software / System Requirements
OS Required ArubaOS, InstantOS
