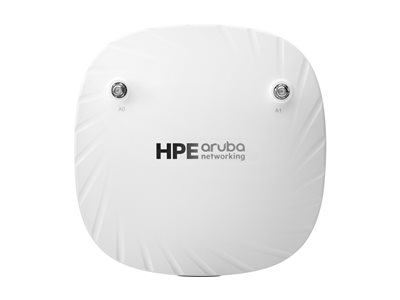

HPE Aruba AP-504 (RW) - Campus - wireless access point

HPE Aruba AP-504 (RW) - Campus - wireless access point

  • Price:
    $542.99
  • Availability:
  • Mfr #:  R2H22A
  • UNSPSC #:  43223108
  • Item #:  007496222
  • Add to Shopping List
  • cnet cat code #:  10050302
Need Help? Contact your Zones Account Manager or call 800.408.9663
Internet of Things (IoT)
Internet of Things (IoT) Compatible Yes
Communications Technology Bluetooth Low Energy (LE), Zigbee
Miscellaneous
Included Accessories Mounting bracket
MTBF 148 years
Compliant Standards UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, ETS 300 019 Class 2.3, ETS 300 019 Class 1.2
Networking
Form Factor External
Connectivity Technology Wireless
Data Transfer Rate 1.2 Gbps
Line Coding Format CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Spread Spectrum Method OFDM, DSSS, OFDMA
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum data rate (2.4 GHz): 574 Mbps Maximum data rate (5 GHz): 1.2 Gbps Aggregate throughput: 1.774 Gbps
Capacity Wireless clients per Wi-Fi radio: 256 BSSIDs per radio: 16 OFDMA units: 8
Status Indicators System, status
Features Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT)
Encryption Algorithm SSL, WPA, WPA2, WPA3
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature 32 F
Max Operating Temperature 122 F
Humidity Range Operating 5 - 93% (non-condensing)
General
Device Type Wireless access point
Ruggedized Design Indoor
Width 6.3 in
Depth 6.3 in
Height 1.5 in
Weight 17.64 oz
Expansion / Connectivity
Interfaces 1 x 1000Base-T - RJ-45 1 x USB 2.0 - Type A 2 x antenna - RP-SMA x 2 1 x console - micro-USB
Power
Power Over Ethernet (PoE) Supported PoE
Power Consumption Operational 8.9 Watt
Antenna
Antenna External detachable
Antenna Qty 2
Software / System Requirements
OS Required ArubaOS, InstantOS
