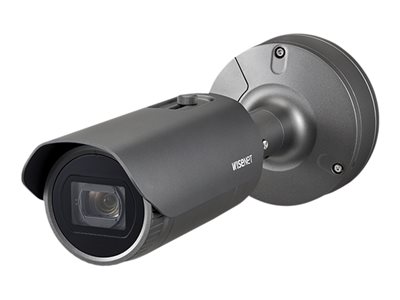

LOW SPEED LPR IR BULLET
LOW SPEED LPR IR BULLET
- Price:
$1,633.99
- Availability:
- Mfr #: XNO-6120R/LPR
- UNSPSC #: 46171610
- Item #: 007948291
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SRTP, EAP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
Miscellaneous
| Compliant Standards | NEMA Type 4X, IP67, IK10, IP66, IEEE 802.3af, IEEE 802.1x |
| Color | Dark gray |
Lens Construction
| Type | Vari-focal |
| Optical Zoom | 12 x |
| Focal Length | 5.2 mm - 62.4 mm |
| Lens Iris | F/1.6-3.0 auto iris (DC) |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 59.1 in |
| Horizontal Field of View (degree) | 5.3 - 54.58 |
| Vertical Field of View (degree) | 3 - 32.19 |
| Diagonal Field of View (degree) | 6.06 - 61.4 |
Image Sensor
| Type | 2.2 MP CMOS 1/2.8" |
| Total Pixels | 1945 x 1109 |
| Effective Pixels | 1945 x 1097 |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Connectivity Technology | Wired |
| Width | 3.6 in |
| Depth | 3.6 in |
| Height | 14.5 in |
| Weight | 4.81 lbs |
Camera
| Type | Color - Day&Night - fixed - outdoor - vandal-proof |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.03 lux - color - F1.6 ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 230 ft |
| Video Capture | 1920 x 1080 @ 60 fps |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), heater, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Correction, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, auto gain control, auto white balance, 300 preset positions, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, Pixel Counter Support, License plate recognition (LPR), Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Hallway View, fog detection, motion detection, Unicast Streaming, Handover, Directional Detection, 2D Noise Filtering |
Expansion / Connectivity
| Ports | Composite video ¦ Audio line-in/microphone ¦ Audio line out - 3.5 mm mono jack ¦ USB - Micro-USB Type B ¦ LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
Power
| Power Requirements | DC 12 V / AC 24 V / PoE Class 3 |
| Power Device | 14.5 Watt |
