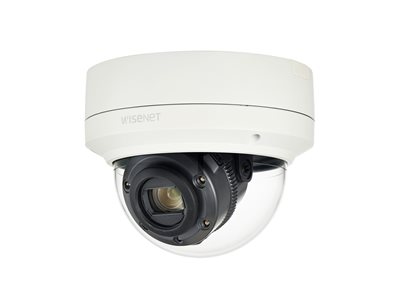

The XNV-6120R/LPR provides a ready-to-go embedded LPR solution. Wisenet X powered by Wisenet 5, low-speed network IR outdoor vandal dome LPR camera for Parking Lots, Drive-thrus, and Entry Gates up to 35MPH. Key camera specifications include 2MP, Full HD(1080p), 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, high powered IR LEDs with readable length for LPR 65 ft, true D/N, dual SD card, hallway view, HLC, Defog detection, DIS, 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, built-in -40°F heater. -40°C ~ +55°C (-40°F ~ +131°F) temperature rating.
- Product Description Hanwha Techwin WiseNet X XNV-6120R/LPR - network surveillance camera - dome
- Device Type Network surveillance camera - fixed - dome - outdoor - vandal-proof
- Audio Yes: two-way audio capability
- Dimensions (WxDxH) 6.3 in x 6.3 in x 5.1 in
- Weight 35.09 oz
- Color Ivory
- Connectivity Technology Wired
- Camera Color - Day&Night
- Optical Zoom 12 x
- Max Resolution 1920 x 1080
- Frame Rate (max) 60 frames per second
- Motion Detection Yes
- Optical Sensor Type CMOS - 1/2.8" - 2.2 MP
- Minimum Illumination 0.03 lux - color - F1.6 ¦ 0 lux - B&W - infrared LEDs on
- Focal Length Control Motorized zoom
- Focal Length 5.2 mm - 62.4 mm
- Focus Adjustment Automatic, manual (min distance 7 ft)
- Lens Iris F/1.6-3.0 - auto iris (DC)
- Panning Range (degree) 0 to 354
- Tilting Range (degree) 0 to 75
- Interfaces Composite video, Ethernet 10Base-T/100Base-TX
- Voltage DC 12 V / AC 24 V / PoE Class 3
- Features Backlight Compensation (BLC), white balance, progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), 2D Noise Reduction Technology, 3D Noise Reduction Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Lens Distortion Compensation (LDC), Automatic Tracing White (ATW), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, video analytics, 300 preset positions, ONVIF (Profile S) support, ONVIF (Profile G) support, digest authentication, License plate recognition (LPR), Samsung Super Noise Reduction (SSNRV), WiseStream II support, Unicast Streaming, Handover
- Environmental Parameters (operating) -40 °F - 131 °F; 0 - 90% relative humidity
|
