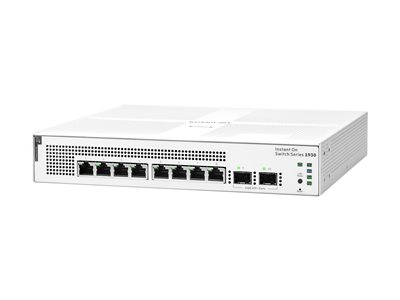

- Product Description HPE Networking Instant On 1930 8G Class4 PoE 2SFP 124W Switch - switch - 10 ports - managed - rack-mountable
- Device Type Switch - 10 ports - L3 - managed
- Enclosure Type Rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP
- Power Over Ethernet (PoE) PoE
- PoE Budget 124 W
- Performance Switching capacity: 20 Gbps ¦ Throughput: 14.88 Mpps ¦ Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 3 µs
- Capacity Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB
- MAC Address Table Size 8000 entries
- Jumbo Frame Support 9216 bytes
- Routing Protocol Static IP routing
- Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
- Features Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af
- Power AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH) 10 in x 10 in x 1.7 in
- Weight 2.56 lbs
- Localization English / United States
- Manufacturer Warranty Limited lifetime warranty
|
