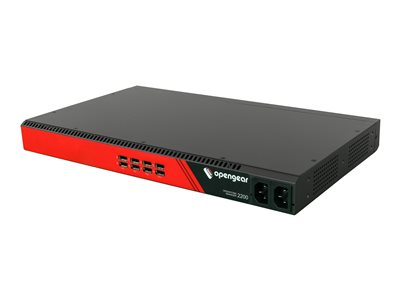

16 SERIAL,8G RAM,64G FLASH,1GBE, US CORD
16 SERIAL,8G RAM,64G FLASH,1GBE, US CORD
- Price:
$4,028.99
- Availability:
- Mfr #: OM2216-US
- UNSPSC #: 43222630
- Item #: 008001700
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Rack mount kit |
| Cables Included | 1 x network cable - 6 ft ¦ 1 x crossover cable |
| MTBF | 100,000 years |
| Compliant Standards | EN 61000-4-2, EN 55032:2015 Class A, EN 61000-4-3:2006 |
Networking
| Form Factor | Rack-mountable |
| Ports Qty | 16 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 230.4 Kbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, serial |
| Features | Firewall protection, Python runtime, Trusted Platform Module 2.0 (TPM 2.0), password protection |
| Authentication Method | Secure Shell (SSH), TACACS+ |
Manufacturer Warranty
| Service & Support | Limited warranty - 4 years |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% |
General
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Width | 17.3 in |
| Depth | 10.2 in |
| Height | 1.8 in |
| Weight | 7.72 lbs |
| Localization | United States |
Processor / Memory / Storage
| Processors Installed | 1 x AMD 1.4 GHz |
| Max Supported Qty | 1 |
| RAM | 8 GB DDR3 SDRAM |
| Flash Memory | 16 MB |
| Hard Drive | SSD 64 GB x 1 - SATA 6Gb/s - M.2 |
Expansion / Connectivity
| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 1 x console - RJ-45 ¦ 16 x RS-232 - RJ-45 ¦ 2 x - SFP (mini-GBIC) ¦ 8 x USB 2.0 - Type A |
Power
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 45 Watt |
