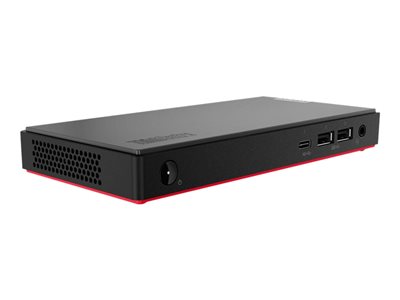

Lenovo ThinkCentre M90n-1 IoT - nano - Core i5 8365U 1.6 GHz - vPro - 8 GB - SSD 512 GB - US
Lenovo ThinkCentre M90n-1 IoT - nano - Core i5 8365U 1.6 GHz - vPro - 8 GB - SSD 512 GB - US
- Price:
$938.99
- Availability:
- Mfr #: 11AK0008US
- UNSPSC #: 43211508
- Item #: 008002262
- Add to Shopping List
Need Help?
Contact your Zones Account Manager or call 800.408.9663
Cache Memory
| Installed Size | 6 MB |
| Cache Per Processor | 6 MB |
Miscellaneous
| Cables Included | USB-C to HDMI adapter |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, WEEE, REACH, Energy-Related Products (ErP) Lot 3, MIL-STD-810H |
| Manufacturer Selling Program | TopSeller |
Networking
| Ethernet Controller | Realtek RTL8111H, Intel I219-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wireless-AC 9560 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Features | Wake on LAN (WoL), dual stream (2x2) |
Dimensions & Weight
| Width | 7 in |
| Depth | 3.5 in |
| Height | 1.4 in |
| Weight | 25.39 oz |
Keyboard
| Keyboard Name | Lenovo Calliope Keyboard |
| Connectivity | Wireless |
| Localization & Layout | US |
Environmental Standards
| EPEAT Compliant | EPEAT Silver |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 7.1 |
Hard Drive
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 3.0 x4 |
| Features | TCG Opal Encryption, NVM Express (NVMe) |
Graphics Controller
| Graphics Processor | Intel UHD Graphics 620 |
| Video Interfaces | HDMI, DisplayPort, USB-C |
| Max Monitors Supported | 2 |
Monitor
| Monitor Type | None. |
Mouse
| Mouse Name | Lenovo Calliope Mouse |
| Connectivity | Wireless |
Storage Controller
| Type | 1 |
| RAID Level | RAID 0, RAID 1 |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years - on-site |
Input Device
| Type | Mouse, keyboard |
General
| Platform Technology | Intel vPro Platform |
| Type | Personal computer |
| Product Form Factor | Nano |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black (bottom), iron gray (top cover), black (mid bezel) |
| Localization | Language: English / region: United States |
Processor / Chipset
| CPU | Intel Core i5 (8th Gen) 8365U / 1.6 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
Expansion / Connectivity
| Slots | 4 (total) / 2 (free) x M.2 Card |
| Interfaces | 3 x USB 3.1 Gen 2 (2 front, 1 rear) ¦ 1 x USB-C 3.1 Gen 2 (1 in front) ¦ 1 x headphones/microphone (1 in front) ¦ 2 x serial (2 in front) ¦ 1 x DisplayPort/USB-C 3.1 Gen 2 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort |
Power
| Device Type | Power adapter |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 65 Watt |
| Efficiency | 88% |
Operating System / Software
| OS Provided | Windows 10 Pro 64-bit Edition English |
RAM
| Installed Size | 8 GB |
| Technology | DDR4 SDRAM - non-ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2666 MHz |
| Configuration Features | Provided memory is soldered |
Optical Storage
| Type | No optical drive |
