Fortinet's 3900E series of enterprise firewalls are engineered to deliver the high firewall performance in a compact appliance form-factor. The FG-3960E enterprise firewalls deliver unprecedented network firewall and IPsec VPN throughput for large data center applications.

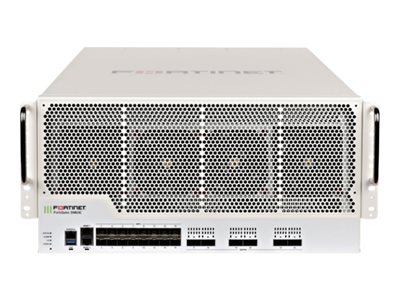

- Product Description Fortinet FortiGate 3960E - Low Encryption - security appliance
- Device Type Security appliance
- Form Factor Rack-mountable - 5U
- Processor Fortinet FortiASIC CP9/NP6
- Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
- Performance IPS throughput (optimal traffic mix): 80 Gbps ¦ IPS throughput (enterprise traffic mix): 30 Gbps ¦ VPN throughput (512-bit IPSec): 280 Gbps ¦ Firewall latency (64-byte UDP): 3 µs ¦ Firewall throughput: 555 Mpps ¦ SSL inspection throughput: 30 Gbps ¦ Firewall throughput (1518-byte UDP): 620 Gbps ¦ Firewall throughput (512-byte UDP): 610 Gbps ¦ Firewall throughput (64-byte UDP): 370 Gbps ¦ Application control (AVC) throughput: 40 Gbps ¦ CAPWAP throughput: 13.5 Gbps ¦ VPN throughput (SSL): 9 Gbps ¦ NGFW throughput: 22 Gbps ¦ Threat protection throughput: 13.5 Gbps
- Capacity Client to gateway IPSec VPN tunnels: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 40000 ¦ Concurrent TCP sessions: 160000000 ¦ New TCP sessions per second: 550000 ¦ Firewall policies: 200000 ¦ Virtual domains: 10 (maximum 500) ¦ Number of FortiClient devices: 100000 ¦ Number of FortiToken devices: 5000 ¦ Concurrent SSL VPN users: 30000 ¦ Number of FortiAP devices: 4096
- Included Accessories 2 SR SFP+ transceivers
- Power AC 120/230 V (50/60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17.2 in x 27.4 in x 8.7 in
- Weight 100.97 lbs
|
