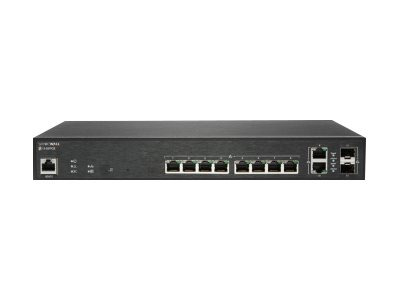

SWITCH SWS12-10FPOE
SWITCH SWS12-10FPOE
- Price:
$360.99
- Availability:
- Mfr #: 02-SSC-2464
- UNSPSC #: 43222631
- Item #: 008004746
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | 180,837 hours |
| Compliant Standards | FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, RoHS, KCC, WEEE, ANATEL, REACH, ICES Class A, LVD, EMC Class A, VCCI Class A, MSIP |
Dimensions & Weight
| Width | 13 in |
| Depth | 9.1 in |
| Height | 1.7 in |
| Weight | 5.51 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
General
| Device Type | Switch - 12 ports - managed |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 10 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 130 W |
| Performance | Switching capacity: 24 Gbps |
| Capacity | Virtual interfaces (VLANs): 4096 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTPS, SSH, CLI |
| Authentication Method | RADIUS |
| Features | Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, Jumbo Frames support, STP Root Guard, DHCP relay, LACP, DHCP client, 512KB packet buffer, Storm Control, Back Pressure Support, LLDP-MED, STP BPDU Guard, EEE, VLAN Tagging, daisy-chaining support, LAG, DSCP based QoS, zero-touch configuration |
| Compliant Standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Status Indicators | Power, PoE, fault |
Expansion / Connectivity
| Interfaces | 10 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45 |
Power
| Power Device | Internal power supply |
| Power Provided | 180 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 152.8 Watt |
