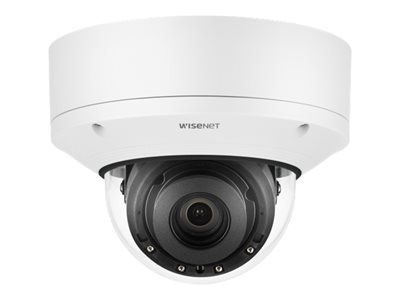

4K IR INDOOR VANDAL DOME AI CAMERA
4K IR INDOOR VANDAL DOME AI CAMERA
- Price:
$1,672.99
- Availability:
- Mfr #: PND-A9081RV
- UNSPSC #: 46171610
- Item #: 008051765
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
Miscellaneous
| Compliant Standards | FCC, cULus, IK10, IP52, EAC |
| Color | White |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 2.2 x |
| Focal Length | 4.5 mm - 10 mm |
| Lens Iris | F/1.6-2.65 auto iris (P-Iris) |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 45.5 - 101.4 |
| Vertical Field of View (degree) | 25.5 - 53.6 |
| Diagonal Field of View (degree) | 52.3 - 120.7 |
Tilting
| Range (degree) | -45 to +85 |
Image Sensor
| Type | 8 MP CMOS 1/1.8" |
| Effective Pixels | 3864 x 2180 |
Environmental Parameters
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 0 - 90% |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 6.3 in |
| Depth | 6.3 in |
| Height | 4.9 in |
| Weight | 3.53 lbs |
Camera
| Type | Color - Day&Night - fixed - indoor - vandal-proof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.05 lux - color - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Video Capture | 3840 x 2160 @ 30 fps |
| Features | Backlight Compensation (BLC), image flip, image mirror, Object Detection, Wide Dynamic Range (WDR), Best Shot Selector (BSS), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, appearing / disappearing detection, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Vehicle Detection, Hallway View, Unicast Streaming, Person Detection, aluminum housing, ONVIF (Profile T) support, Virtual Line detection, Directional Detection |
Panning
| Range (degree) | 360 |
Expansion / Connectivity
| Ports | Composite video ¦ USB - Micro-USB Type B ¦ Audio line-in/microphone ¦ Audio line out ¦ LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | DC 12 V / PoE Plus |
| Power Device | 20 Watt |
Software / System Requirements
| OS Required | Windows 8.1, Windows 10, Apple macOS 10.12 - 10.14 |
