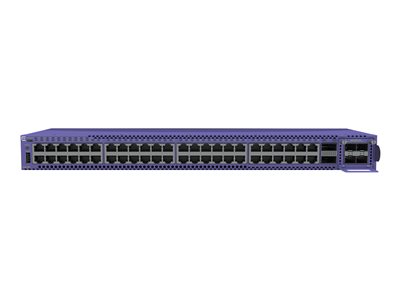

5520 48PT DATA SWCH
5520 48PT DATA SWCH
- Price:
$5,409.99
- Availability:
- Mfr #: 5520-48T
- UNSPSC #: 43222612
- Item #: 008052029
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | BSMI, IEC 61000-4-2, IEC 61000-4-6, NOM, EN55024, CB, AS/NZS 60950-1, EN 61000-4-2, CCC, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, EN 55011, ANATEL, REACH, CDRH, Directive 2011/65/EU, VCCI Class A, EAC, China RoHS, RoHS 2011/65/EU, EN 61000-3-3:2013, WEEE 2012/19/EU, EMC 2014/30/EU, EN 61000-3-2:2014, FCC CFR47 Part 15 A, EN 300 386, Directive 2014/35/EU, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, EN 55032 Class A, ETSI EN 300 019-2-3 V2.1.2, ETSI EN 300 019-2-2 V2.1.2, NRCS, EN/ETSI 300 019-2-1 v2.1.2, ASTM D3580, CISPR 24:2010 Class A, ACMA RCM, CISPR 32 Class A, SJ/T 11363-2006, AS/NZS CISPR32:2013, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 60950-1, FCC CFR21 Part 1040.10, Taiwan BSMI RoHS, CNS 15663, EN/ETSI 300 753 (1997-10), UL/CUL 62368-1 |
Dimensions & Weight
| Width | 17.4 in |
| Depth | 17.4 in |
| Height | 1.7 in |
| Weight | 12.7 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
General
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 |
| Performance | Aggregate switching bandwidth: 696 Gbps ¦ Forwarding performance: 517.8 Mpps |
| Capacity | Policy profiles: 63 ¦ Unique permit/deny rules per switch: 8120 ¦ Authenticated policy users/switch: 9216 ¦ Fabric adjacencies per switch: 128 ¦ Fabric nodes per area (BEB + BCB): 800 ¦ BEB nodes per VSN: 500 ¦ L2 VSN: 3500 ¦ L3 VSN: 256 |
| Max Units In A Stack | 8 |
| Features | Auto-sensing per device, half duplex mode, full duplex mode, Energy Efficient Ethernet, MACsec support, 3 fan trays |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3az |
Expansion / Connectivity
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 ¦ 2 x network stack device QSFP28 ¦ 1 x serial (console) RJ-45 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x USB Type A ¦ 1 x console (micro-USB) Type B |
| Expansion Slots | 1 (total) / 1 (free) x Versatile Interface Module (VIM) |
Power
| Power Device | Internal power supply (not installed) |
| Installed Qty | 2 (max) |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 171 Watt |
Software / System Requirements
| Software Included | ExtremeCloud IQ Pilot (1 year) |
