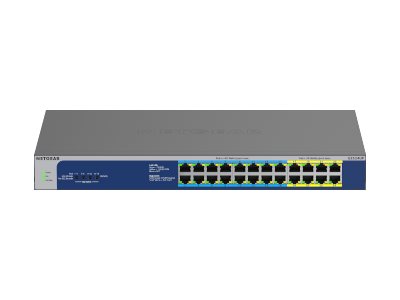

24-PORT HIGH-POWER POE+ GIGABIT
24-PORT HIGH-POWER POE+ GIGABIT
- Price:
$538.99
- Availability:
- Mfr #: GS524UP-100NAS
- UNSPSC #: 43222612
- Item #: 008099369
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| MTBF | 809853.3 hours |
| Compliant Standards | Plug and Play, AS/NZS 62368.1, BSMI CNS 14336-1, EN 62368-1 Second Edition, EN60950-1 (2nd Edition), IEC 60950-1, IEC 62368-1, UL 62368-1 |
| Localization | Asia Pacific, North America |
Dimensions & Weight
| Width | 15.4 in |
| Depth | 8.7 in |
| Height | 1.7 in |
| Weight | 6.83 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
General
| Device Type | Switch - 24 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 16 x 10/100/1000 (PoE++) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 480 W |
| Performance | Non-blocking switching throughput: 48 Gbps ¦ Forwarding rate (1000Mbps): 1448000 packets per second ¦ Latency (64-byte packets): 12 µs |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-uplink (auto MDI/MDI-X), auto-negotiation, metal housing, 192KB packet buffer, WRR, CoS, DSCP support, 2 fans |
| Compliant Standards | IEEE 802.3at, IEEE 802.3bt, IEEE 802.3az |
| Status Indicators | Link/activity, power, fan, PoE |
Expansion / Connectivity
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 16 ports (PoE++)/8 ports (PoE+) - 60 W |
Power
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC 100 - 230 V (50/60 Hz) |
| Power Consumption Operational | 578.8 Watt |
| Power Consumption Stand by | 24.4 Watt |
