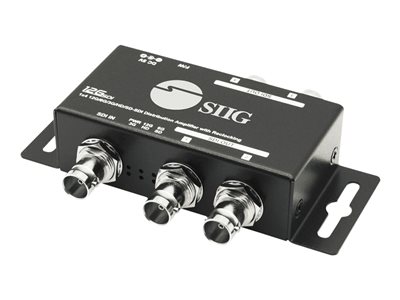

1X4 12G SDI DISTRIBUTION AMPLIFIER 180M
1X4 12G SDI DISTRIBUTION AMPLIFIER 180M
- Price:
$319.99
- Availability:
- Mfr #: CE-SD0G11-S1
- UNSPSC #: 52161500
- Item #: 008183807
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Studio & Production Equipment
| Features | Reclocking, signal equalizing, firmware upgradable |
Manufacturer Warranty
| Warranty | 3 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
Kit Content
| Kit Content | (1) x power adapter |
General
| Type | Distribution amplifier |
| Width | 4.3 in |
| Depth | 3 in |
| Height | 0.9 in |
| Weight | 6.07 oz |
Terminals
| Terminals | (1) x 12G-SDI input - BNC ¦ (4) x 12G-SDI output - BNC ¦ (1) x USB - Micro-USB Type B |
Power
| Voltage Required | AC 120/230 V |
| Nominal Voltage | AC 120/230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 2.5 Watt |
| Max Power Consumption | 2.5 Watt |
| Low Voltage Power | DC 5 V |
