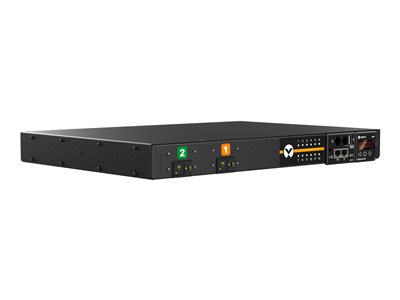

RPDU, SWITCHED UNIT LEVEL MONITORING EC

Need Help? Contact Zones Online support at 800.408.9663

Miscellaneous

Cables Included	Power cable 10 ft
Features	LED display, twist lock plug, monitored, IP reset button, 2 x 20A single pole magnetic breakers, hard reboot button
Compliant Standards	UL 60950, RoHS, FCC Part 15 A
TAA Compliant	Yes

Networking

Remote Management Interface	Ethernet 10/100, RS-232, USB
Remote Management Protocol	SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6, JSON, RSTP, TACACS+, LDAP, RADIUS

Dimensions & Weight

Manufacturer Warranty

Service & Support

Limited warranty - 5 years with product registration (within 120 days of purchase) � Limited warranty - 3 years

Environmental Parameters

Max Operating Temperature

140 �F

General

Device Type	Power distribution unit - rack-mountable
Rack Size	19"
Cord Length	10 ft
Color	Black powder coat

Power Device

Input Voltage	AC 120 V
Input Voltage Range	AC 100 - 120 V
Frequency Required	50/60 Hz
Input Connectors	1 x power NEMA 5-30P
Power Output Connectors Details	12 x power NEMA 5-20R
Output Voltage	AC 120 V
Max Electric Current	30 A
Power Capacity	2.8 kW

Expansion / Connectivity

Interfaces

2 x management (Fast Ethernet) - RJ-45 � 1 x sensor - RJ-12 � 1 x RS-232 - RJ-45 � 1 x USB

Dimensions & Weight (Shipping)

Shipping Weight

11.99 lbs
