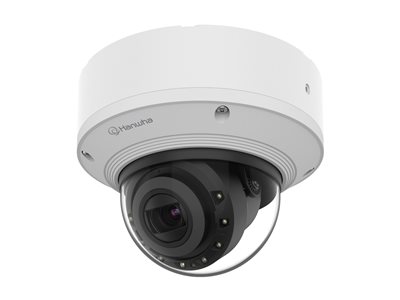

Hanwha Techwin WiseNet X XND-9082RV - network surveillance camera - dome
Hanwha Techwin WiseNet X XND-9082RV - network surveillance camera - dome
- Price:
$1,068.99
- Availability:
- Mfr #: XND-9082RV
- UNSPSC #: 43222631
- Item #: 008231196
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, LLDP |
Miscellaneous
| Compliant Standards | FCC, cULus, IK10, IP52, EAC, IEEE 802.3af |
| Color | White, RAL 9003 |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 3 x |
| Focal Length | 2.8 mm - 8.4 mm |
| Lens Iris | F/1.2-2.8 auto iris (DC, P-Iris) |
| Min Focus Distance | 27.6 in |
| Horizontal Field of View (degree) | 40.2 - 114 |
| Vertical Field of View (degree) | 22.5 - 62 |
| Diagonal Field of View (degree) | 46.3 - 133 |
Tilting
| Range (degree) | -45 to +85 |
Image Sensor
| Type | CMOS 1/1.8" |
Environmental Parameters
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% RH |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 6.3 in |
| Depth | 6.3 in |
| Height | 4.9 in |
| Weight | 3.53 lbs |
Camera
| Type | Color - Day&Night - fixed - indoor - vandal-proof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.05 lux - color - F1.2 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 131 ft |
| Video Capture | 3840 x 2160 @ 30 fps |
| RAM | 4 GB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), tamper-detection, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, appearing / disappearing detection, digest authentication, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Extreme WDR, Hallway View, motion detection, Unicast Streaming, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, body detection, sound classification, digital auto tracking |
Panning
| Range (degree) | 360 |
Expansion / Connectivity
| Ports | Composite video ¦ USB - Micro-USB Type B ¦ Audio line-in/microphone ¦ Audio line out ¦ LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Power
| Power Requirements | DC 12 V / PoE |
| Power Device | 12.95 Watt |
Software / System Requirements
| OS Required | Windows 8.1 or later, Apple macOS 10.13 or later |
