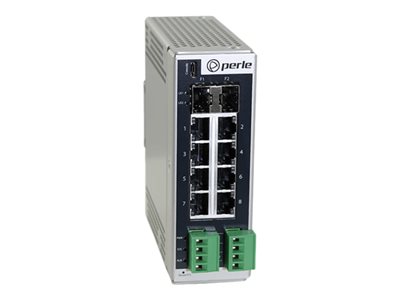

- Product Description Perle IDS-710HP-XT - switch - 10 ports - managed
- Device Type Switch - 10 ports - managed
- Subtype Gigabit Ethernet
- Ports 8 x 10/100/1000 (High PoE) + 2 x 10/100/1000/2.5G SFP
- Power Over Ethernet (PoE) High PoE
- PoE Budget 450 W
- Capacity IGMP groups: 1024 ¦ VLAN IDs: 4000 ¦ Virtual interfaces (VLANs): 256
- MAC Address Table Size 8K entries
- Routing Protocol IGMP, IGMPv2, IGMPv3
- Remote Management Protocol Modbus, SNMP 3, SSH, HTTPS, CLI, Telnet, RMON, SSH-2, SNMP 2c, SNMP 1, HTTP, TFTP, NTP, SCP
- Features PROFINET, MSTP support, RSTP support, STP support, IGMP snooping, LLDP-MED, Voice VLAN, GMRP, GVRP, MLD snooping, IPv6 support, QoS, port mirroring, DHCP support, realtime clock, fanless, auto-uplink (auto MDI/MDI-X), auto-sensing per device, flow control, Link Aggregation, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, bandwidth control, SNMP trap, IPv4 support, DHCP relay, DHCP client, DHCP server, LLDP support, SNTP support, PTP, SCP, MRP, port trunking, ACL support, AAA, ToS, DSCP based ToS, CoS, Syslog support, event log, MIB, store and forward, 1Mbit packet buffer, 10 KB Jumbo Frame, metal housing, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), reset button, microSD card slot, firmware upgradable
- Compliant Standards IEEE 802.3bt, IEEE 802.1x, IEEE 1588-2008, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 1588v2, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
- Power DC 44 - 57 V
- Dimensions (WxDxH) 1.8 in x 5.1 in x 5.1 in
- Weight 16.93 oz
- Manufacturer Warranty 5-year warranty
|
