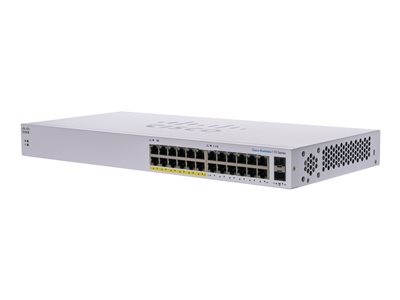

Cisco Business 110 Series 110-24PP - switch - 24 ports - unmanaged - rack-mountable
Cisco Business 110 Series 110-24PP - switch - 24 ports - unmanaged - rack-mountable
- Price:
$291.99
- Availability:
- Mfr #: CBS110-24PP-NA
- UNSPSC #: 43222612
- Item #: 008275337
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Mounting kit |
| MTBF | 340,703 hours |
| Compliant Standards | FCC Class B certified, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
| Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 8 in |
| Height | 1.7 in |
| Weight | 6.57 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
General
| Device Type | Switch - 24 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 10/100/1000 (PoE) + 12 x 10/100/1000 + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 100 W |
| Performance | Forwarding performance (64-byte packet size): 35.7 Mpps ¦ Switching capacity: 48 Gbps |
| Capacity | Buffer capacity (MB): 2 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Cable Diagnostics Function, fanless, Energy Efficient Ethernet, Head-of-line (HOL) blocking, Weighted Round Robin (WRR), loopback detection, security slot (Kensington security lock compatible) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3az |
| Processor | X ARM: 400 MHz |
| RAM | 64 MB |
| Flash Memory | 8 MB |
| Status Indicators | Power, PoE, link/activity |
Expansion / Connectivity
| Interfaces | 12 x 10/100/1000 Base-T RJ-45 PoE ¦ 12 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 135.67 Watt |
