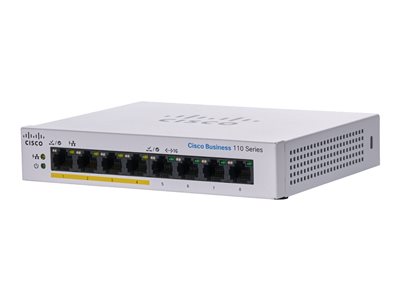

BUSINESS110SERIES UNMANAGED SW 8P GE PARTIAL POE DT CBS110-8PP-D
  • Price:
    $115.99
« Back

BUSINESS110SERIES UNMANAGED SW 8P GE PARTIAL POE DT CBS110-8PP-D

BUSINESS110SERIES UNMANAGED SW 8P GE PARTIAL POE DT CBS110-8PP-D

  • Price:
    $115.99
  • Availability:
  • Mfr #:  CBS110-8PP-D-NA
  • UNSPSC #:  43222612
  • Item #:  008275459
  • Add to Shopping List
  • cnet cat code #:  10050204
Need Help? Contact Zones Online support at 800.408.9663
Miscellaneous
Included Accessories Mounting kit
MTBF 465,437 hours
Compliant Standards UL 60950, CSA 22.2, FCC CFR47 Part 15 A, FCC Class B certified
Localization United States, Canada, Mexico, Colombia, Chile, Latin America
Dimensions & Weight
Width 6.3 in
Depth 5.1 in
Height 1.2 in
Weight 19.4 oz
Manufacturer Warranty
Service & Support Limited warranty - lifetime ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -4 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 - 90% (non-condensing)
General
Device Type Switch - 8 ports - unmanaged
Enclosure Type Rack-mountable, desktop, wall-mountable
Subtype Gigabit Ethernet
Ports 4 x 10/100/1000 (PoE) + 4 x 10/100/1000
Power Over Ethernet (PoE) PoE
PoE Budget 32 W
Performance Forwarding performance (64-byte packet size): 11.9 Mpps ¦ Switching capacity: 16 Gbps
Capacity Buffer capacity (MB): 2
MAC Address Table Size 8K entries
Jumbo Frame Support 9216 bytes
Features QoS, Energy Efficient Ethernet, HOL blocking, WRR, loopback detection, Cable Diagnostics Function, auto-uplink (auto MDI/MDI-X), flow control, fanless, security slot (Kensington security lock compatible)
Compliant Standards IEEE 802.3az, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af
Status Indicators Power, link/activity, PoE
Expansion / Connectivity
Interfaces 4 x 10/100/1000 Base-T RJ-45 PoE ¦ 4 x 10/100/1000 Base-T RJ-45
Power
Power Provided 1.25 A
Voltage Required DC 48 V
Power Consumption Operational 38.2 Watt
