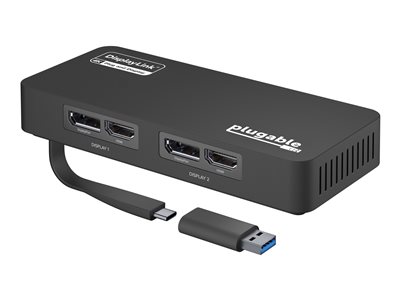

Plugable USB 3.0 and USB-C Dual 4K Display Adapter (USBC-6950U) allows you to connect up to two additional displays that support up to 3840x2160@60Hz resolutions each. Our adapter is compatible with most modern Macs and Windows laptops, desktops and tablets that have a USB 3.0 or USB Type-C or Thunderbolt 3 port.
Performance Equipped with the state of the art DisplayLink DL-6950 chipset, our adapter can support two external HDMI 2.0 or DP 1.2 displays up to 4K resolutions per display from the HDMI 2.0 or DP 1.2 outputs. Please note that a monitor with HDMI 2.0 and/or DP1.2 input ports and a HDMI 2.0 or DP 1.2 cable is required to achieve 3840x2160@60Hz Supports popular resolutions such as 1440p, 1080p and lower at 60Hz refresh rate
Compatibility Compatible with most modern Windows 10 / 8.1 / 7 and Mac 10.14+ systems Minimum System Specifications Intel SkyLake i3, Intel Core i7 or AMD A10 CPU at 2.0 GHz or Higher Intel HD 4000, AMD Radeon HD 8650, Nvidia GeForce 7xxM or better 8GB RAM USB-C 3.1 gen 1 or Thunderbolt 3 port Non-Compatible Systems Cannot be mixed with non-DisplayLink USB graphics adapters and drivers (e.g. MCT, j5, or SMSC). Not compatible with MacOS, Linux/Unix or ARM-based Windows Does not support Dual-Link DVI conversions Does not support HDCP copy protected content. Not recommended for gaming.
In the Box Plugable USB 3.0 and USB-C Dual 4K Display Adapter (USBC-6950U) Quick Start Guide.
- Product Description Plugable USBC-6950U - adapter - DisplayPort / HDMI / USB
- Cable Adapter - DisplayPort / HDMI / USB
- Max Output Resolution 3840 x 2160 - 60 Hz
- Connectors 24 pin USB-C - male (input) ¦ USB Type A - male (input)
- Connectors (Second End) 2 x HDMI - female (output) ¦ 2 x DisplayPort - female (output)
- Compliant Standards DisplayPort 1.2
- Features 4K support
- Manufacturer Warranty 2-year warranty
|
