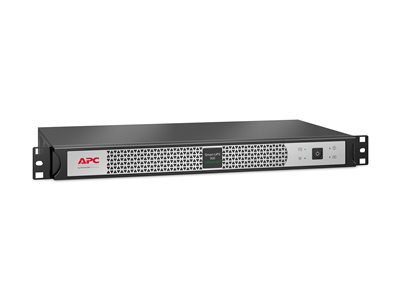

APC Smart-UPS C Lithium Ion, Short Depth 500VA, 230V with SmartConnect
APC Smart-UPS C Lithium Ion, Short Depth 500VA, 230V with SmartConnect
- Price:
$645.99
- Availability:
- Mfr #: SCL500RMI1UC
- UNSPSC #: 39121011
- Item #: 008542429
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Compatibility Information
| Designed For | P/N: ACCS1001, ACDC1015, ACDC1019, AP5607, AP9290, AR106V, AR3150SP2, AR3300W, AR3350W, AR3357X610, AR3357X617, AR4018A, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432 |
Miscellaneous
| Features | LED display, audible alarm |
| Compliant Standards | CSA, EAC, GS, IEC 60950-1, IEC 62040-1, IEC 62040-2, RCM |
Networking
| Remote Management Interface | Ethernet 10/100, USB |
| Remote Management Protocol | SNMP 1, SNMP 3 |
Dimensions & Weight
| Width | 17 in |
| Depth | 9.1 in |
| Height | 1.7 in |
| Weight | 9.04 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Battery
| Technology | Lithium ion |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Sound Emission | 45 dBA |
General
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 1U |
| Color | Black, silver |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 207 - 253 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | Power IEC 60320 C14 |
| Power Output Connectors Details | 4 x power IEC 60320 C13 |
| Output Voltage | AC 230 V ± 2% - 50/60 Hz |
| Power Capacity | 400 Watt / 500 VA |
| Output Waveform | Sinewave |
| Efficiency | 97% |
Expansion / Connectivity
| Interfaces | 1 x management (USB) - 4 pin USB Type A ¦ 1 x management (Ethernet) - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Weight | 14.33 lbs |
Software / System Requirements
| Software Included | APC PowerChute Business Edition |
