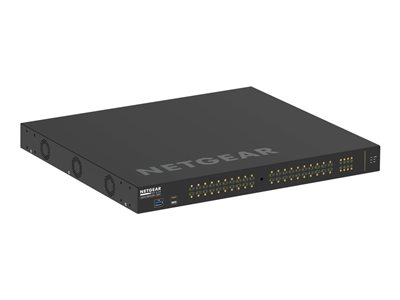

AV LINE M4250-40G8F-POE+ 40X1G POE+ 480W
AV LINE M4250-40G8F-POE+ 40X1G POE+ 480W
- Price:
$2,535.99
- Availability:
- Mfr #: GSM4248P-100NAS
- UNSPSC #: 43222612
- Item #: 008646975
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Rubber feet, rubber caps |
| Cables Included | 1 x console cable ¦ 1 x USB-C to USB-A cable |
| Rack Mounting Kit | Included |
| MTBF | 341,680 hours |
| Compliant Standards | cUL, EN 60950, UL 1950, CB, CCC, EN 60950-1, GB 4943, RCM, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC 950, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011+A2:2013, ANSI C63.4:2014 |
| Localization | Americas |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 15.7 in |
| Height | 1.7 in |
| Weight | 12.9 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime ¦ Limited warranty - technical support - 90 days |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 95% (non-condensing) |
General
| Device Type | Switch - 40 ports - L3 - managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 40 x 10/100/1000 (PoE+) + 8 x 1000Base-X SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 480 W |
| Performance | Switching capacity: 96 Gbps ¦ Firewall throughput (64-byte packet size): 71.42 Mpps ¦ 1 Gbps fiber latency (64-byte packets): 1.074 µs ¦ 1 Gbps fiber latency (512-byte packets): 1.109 µs ¦ 1 Gbps fiber latency (1024-byte packets): 1.106 µs ¦ 1 Gbps fiber latency (1518-byte packets): 1.102 µs ¦ 1 Gbps copper latency (64-byte packets): 2.027 µs ¦ 1 Gbps copper latency (512-byte packets): 2.343 µs ¦ 1 Gbps copper latency (1024-byte packets): 2.462 µs ¦ 1 Gbps copper latency (1518-byte packets): 2.358 µs |
| Capacity | ARP entries: 4000 ¦ NDP entries: 4000 ¦ Packet buffer size: 32 MB ¦ VLANs supported: 4093 ¦ IGMP multicast groups: 4000 ¦ QoS hardware queues: 8 ¦ IPv4 routes (static): 64 ¦ IPv6 routes (static): 64 ¦ RIP application route scaling (IPv4): 32 ¦ IPv4 groups (Multicast): 512 ¦ IPv6 groups (Multicast): 128 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS |
| Encryption Algorithm | AES, TLS 1.0, SSL 3.0, TLS 1.2 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Flow control, auto-sensing per device, BOOTP support, IGMP snooping, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, WRED, sFlow, DHCP snooping, QoS, DHCP server, MLD snooping, DAI, STP Root Guard, UDLD, LACP support, LLDP support, DHCP relay, Port Security, RSPAN, Energy Efficient Ethernet, MVR, dual firmware images, MVRP, NDP, CoS, SP, GARP, GVRP, IGMP proxy, 802.1x authentication, PTP, DSCP support, cable test, MLD proxy, IP source guard, GMRP, SSM, DNS client, Voice VLAN, LLDP-MED, RA guard, STP BPDU Guard, STP loop guard, DoS protection, PIM, AVB, MAB, LAG, TPID, IPTV support, MACAL, ISDP, RPVST+, MRP, STP BPDU Filtering, STP BPDU Flooding, MGMD Snooping, ASM |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Processor | X ARM: 1.8 GHz |
| RAM | 2 GB |
| Flash Memory | 256 MB |
| Status Indicators | Port status, power, fan, PoE max |
Expansion / Connectivity
| Interfaces | 40 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 8 x 1000Base-X SFP ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x management (RS-232) RJ-45 ¦ 1 x USB-C ¦ 1 x USB Type A |
Power
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Power Consumption Operational | 624.8 Watt |
| Power Consumption Stand by | 46.4 Watt |
