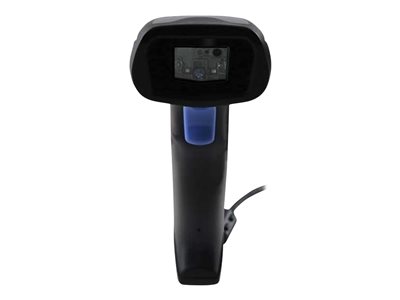

Datalogic QuickScan QD2590 - Kit - barcode scanner
Datalogic QuickScan QD2590 - Kit - barcode scanner
![](https://media.zones.com/images/mfr/spacer.gif)
- Price:
$146.99
- Availability:
- Mfr #: QD2590-BKK1B
- UNSPSC #: 43211711
- Item #: 008752708
- Add to Shopping List
![](https://media.zones.com/images/products/7196D50F-EFE9-4383-A22E-27D68E02C783.jpg)
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
Included Accessories | Autosense stand |
Cables Included | USB cable |
Compliant Standards | RoHS, IP52 |
Dimensions & Weight
Width | 2.7 in |
Depth | 5 in |
Height | 5.8 in |
Weight | 5.11 oz |
Barcode
Interface Type | Keyboard wedge, RS-232, USB |
Minimum Bar Width | 3 mil |
Scan Element Type | 2D imager - red LED |
Sensor Resolution | 1280 x 800 |
Light Source Wave Length | 617 nm |
Scan Mode | Single-pass |
Frame Rate | 60 frames / sec |
Max Working Distance | 16.1 in |
Skew (Degrees) | 65 |
Pitch (Degrees) | 65 |
Print Contrast Signal (PCS) | 15% |
Decode Capability | EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, UPC A Composite, UPC E Composite |
TTL Decoding | Decoded |
Connectivity Technology | Wired |
OK Notification | Beeper, LED indicator |
Features | Green Spot technology, Digimarc Barcode Technology |
Manufacturer Warranty
Service & Support | Limited warranty - 5 years |
Environmental Parameters
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 0 - 95% (non-condensing) |
Drop Specification | 5 ft to concrete |
General
Type | Barcode scanner - handheld |
Color | Black |
Software
Software Included | Datalogic Aladdin |
Expansion / Connectivity
Interfaces | 1 x RS-232 ¦ 1 x keyboard wedge ¦ 1 x USB |
Power
Voltage | DC 5 V |
Electric Current Required | 90 mA (standby), 450 mA (typical) |
