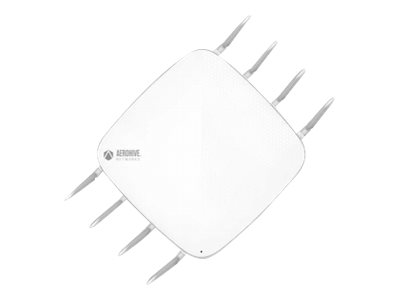

EXTREMECLOUD IQ INDR WIFI6 AP 4X4

Need Help? Contact Zones Online support at 800.408.9663

Internet of Things (IoT)

Communications Technology

Bluetooth Low Energy (LE), Zigbee

Miscellaneous

Included Accessories	Mounting kit
MTBF	347,530 hour(s)
Compliant Standards	Plug and Play, ICES-003 Class B, AS/NZS 60950-1, UL 2043, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, CAN/CSA C22.2 No. 60950-1-03, EN 300 328, RSS-247, EN 62368-1, EN 301 893, FCC Subpart C 15.247, FCC Subpart E 15.407, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, AS/NZS 62368-1

Networking

Form Factor	External
Connectivity Technology	Wireless
Data Transfer Rate	4.8 Gbps
Line Coding Format	1024 QAM, OFDMA
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6)
Network / Transport Protocol	IPSec, CSMA/CA
Frequency Band	2.4 GHz, 5 GHz
Features	Trusted Platform Module (TPM), Direct Sequence Spread Spectrum (DSSS), security lock slot (cable lock sold separately), quad-stream (4x4)
Encryption Algorithm	AES, SSL, WPA, WPA2, IKEv2, WPA3
Compliant Standards	IEEE 802.3af, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.3at, IEEE 802.3az, IEEE 802.11w, IEEE 802.11r, IEEE 802.11ax, Wi-Fi CERTIFIED 6

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

General

Expansion / Connectivity

Interfaces

1 x 1000Base-T (PoE) - RJ-45 � 1 x 1/2.5GBase-T (PoE) - RJ-45 � 1 x console - RJ-45 � 8 x antenna - RP-SMA

Power

Power Over Ethernet (PoE) Supported

PoE

Antenna

Antenna	External detachable
Antenna Qty	8
