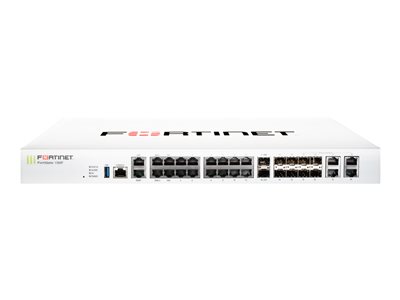

The FortiGate 100F series delivers next-generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.
- Product Description Fortinet FortiGate 100F - security appliance - with 3 Years ASE FortiCare and FortiGuard 360 Protection Bundle
- Device Type Security appliance
- Bundled Services 3 Years ASE FortiCare and FortiGuard 360 Protection Bundle
- Form Factor Side to back airflow rack-mountable - 1U
- Processor 1 x Fortinet FortiASIC SOC4
- Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
- Performance IPS throughput: 2.6 Gbps ¦ NGFW throughput: 1.6 Gbps ¦ Threat protection throughput: 1 Gbps ¦ Firewall throughput (1518-byte UDP): 20 Gbps ¦ Firewall throughput (512-byte UDP): 18 Gbps ¦ Firewall throughput (64-byte UDP): 10 Gbps ¦ Firewall latency (64-byte UDP): 4.97 µs ¦ Firewall throughput: 15 Mpps ¦ VPN throughput (512-bit IPSec): 11.5 Gbps ¦ VPN throughput (SSL): 1 Gbps ¦ SSL inspection throughput: 1 Gbps ¦ Application control throughput: 2.2 Gbps ¦ CAPWAP throughput: 15 Gbps
- Capacity Concurrent TCP sessions: 1500000 ¦ New TCP sessions per second: 56000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2500 ¦ Client to gateway IPSec VPN tunnels: 16000 ¦ Concurrent SSL VPN users: 500 ¦ SSL inspection CPS: 1800 ¦ SSL inspection concurrent sessions: 135000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 10 ¦ Number of FortiSwitches: 32 ¦ Number of FortiAP devices: 128 ¦ Number of FortiAP devices (tunnel): 64 ¦ Number of FortiToken devices: 5000
- Power AC 100-240 V (50/60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17 in x 10 in x 1.7 in
- Weight 7.25 lbs
|
