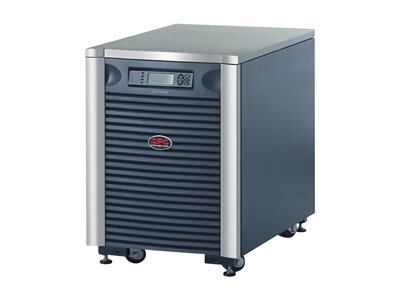

SYMMETRA LX 8KVA SCALABLE 8KVA N+1WER 220/230/240
SYMMETRA LX 8KVA SCALABLE 8KVA N+1WER 220/230/240
- Price:
$17,270.99
- Availability:
- Mfr #: SYA8K8I
- UNSPSC #: 39121011
- Item #: 009094885
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Features | Emergency power off, LCD display, audible alarm |
| Compliant Standards | C-Tick, GOST, EN 60950, VDE, IEC 60950, EN55024, EN55022 Class A, EN 50091-2 |
Networking
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP |
Dimensions & Weight
| Width | 19 in |
| Depth | 28.6 in |
| Height | 26 in |
| Weight | 445.33 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Battery
| Quantity | 2 (installed) / 2 (supported) |
| Technology | Lead acid |
| Run Time (Up To) | 7.5 min at full load |
| Recharge Time | 3 hours |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 62 dB |
General
| Device Type | Power array - external |
| Height (Rack Units) | 13U |
| Color | Black, silver |
Power Device
| Supported Battery Technology | Lead acid |
| Input Voltage | AC 220/230/240/380/400/415 V |
| Input Voltage Range | AC 155/276 - 290/480 V |
| Frequency Provided | 47 - 63 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 45 - 65 Hz |
| Input Connectors | 2 x hardwire 3-wire (1PH + N + G), hardwire 5-wire (3PH + N + G) |
| Power Output Connectors Details | 1 x hardwire 3-wire (HN + E) |
| Output Voltage | AC 220/230/240 V ± 5% - 47 - 63 Hz |
| Power Capacity | 8000 VA |
| Output Waveform | Sinewave |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (Ethernet) - RJ-45 |
| Expansion Slots | 2 (total) / 1 (free) x SmartSlot |
