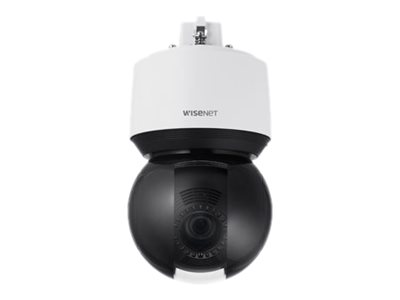

The XNP-6400R PTZ PLUS features our Wisenet 7 chipset, to deliver a 2MP resolution 40X optical zoom camera. Featuring increased look up tilt range, 360° endless pan, and IR illumination, in a new compact, lightweight form factor for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology, extreme WDR, advanced video analytics and sound classification (I/O box required for audio detection/classification), true D/N, dual SD card slots, DIS (Gyro), HPoE, IP66/IK10, temperature range from -40°F ~ +131°F.
- Product Description Hanwha Techwin WiseNet X Plus XNP-6400R - network surveillance camera
- Device Type Network surveillance camera - pan / tilt / zoom
- Dimensions (WxDxH) 6.2 in x 6.2 in x 11.5 in
- Weight 7.05 lbs
- Color Black, white, RAL 9005, RAL 9003
- Connectivity Technology Wired
- Camera Color - Day&Night
- Optical Zoom 40 x
- Max Resolution 1920 x 1080
- Frame Rate (max) 60 frames per second
- Motion Detection Yes
- Optical Sensor Type CMOS - 1/2.8" - 2 MP
- Minimum Illumination 0.05 lux - color - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on
- Focal Length Control Motorized zoom
- Focal Length 4.25 mm - 170 mm
- Focus Adjustment Automatic, manual (min distance 10 ft)
- Lens Iris F/1.6-4.95 - auto iris (DC)
- Panning Range (degree) 360
- Tilting Range (degree) -20 to +90
- Interfaces Ethernet 10Base-T/100Base-TX
- Voltage High PoE Class 6
- Features Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Camera Tampering Detection, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Defog, Smart Codec, auto white balance, 300 preset positions, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, appearing / disappearing detection, digest authentication, Object Tracking, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Extreme WDR, fog detection, motion detection, Unicast Streaming, aluminum housing, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, polycarbonate housing, Gain Control, Target lock tracking
- Manufacturer Warranty 3-year warranty
- Environmental Parameters (operating) -40 °F - 131 °F; 0 - 95% RH (non-condensing) relative humidity
|
