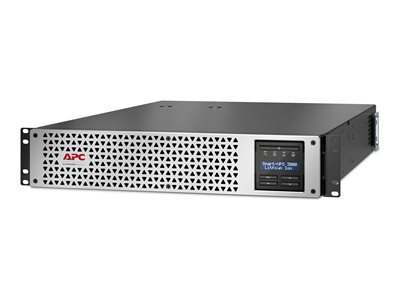

SMART-UPS LITHIUM-ION-3000VA 120V SMARTCONNECT
SMART-UPS LITHIUM-ION-3000VA 120V SMARTCONNECT
- Price:
$4,095.99
- Availability:
- Mfr #: SMTL3000RM2UC
- UNSPSC #: 43210000
- Item #: 009103148
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - integrated - 8 ft |
| Rack Mounting Kit | Included |
| Features | Audible alarm, LCD display |
| Compliant Standards | UL 1449, C-Tick, EAC, GS, IEC 60950, RCM, UL 1973, RoHS, REACH |
Networking
| Remote Management Interface | RS-232, USB |
Dimensions & Weight
| Width | 17 in |
| Depth | 26.9 in |
| Height | 3.4 in |
| Weight | 75.44 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Battery
| Technology | Lithium ion |
| Run Time (Up To) | 6 min at full load ¦ 12 min at half load |
| Recharge Time | 2 hours |
| Transfer Time | 6 ms |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 45 dBA |
General
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Color | Black, silver |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 63 - 154 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Power Output Connectors Details | 2 x power NEMA 5-20R ¦ 6 x power NEMA 5-15R |
| Output Voltage | AC 100/110/120/125 V ± 5% - 50/60 Hz |
| Power Capacity | 2700 Watt / 3000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 459 Joules |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) ¦ 1 x SmartConnect - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Dimensions & Weight (Shipping)
| Shipping Width | 23.6 in |
| Shipping Depth | 37.8 in |
| Shipping Height | 10 in |
| Shipping Weight | 94.05 lbs |
