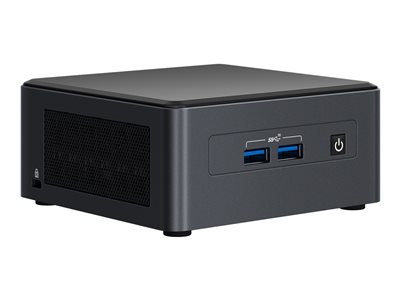

Intel Next Unit of Computing Kit 11 Pro Kit - NUC11TNHi50L - mini PC - Core i5 1135G7 2.4 GHz - 0 GB - no HDD

Intel Next Unit of Computing Kit 11 Pro Kit - NUC11TNHi50L - mini PC - Core i5 1135G7 2.4 GHz - 0 GB - no HDD

  • Price:
    $500.99
Need Help? Contact Zones Online support at 800.408.9663
Cache Memory
Installed Size 8 MB
Cache Per Processor 8 MB
Miscellaneous
Compliant Standards BSMI, ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, RoHS, FCC Part 15 E, BSMI CNS 13438, REACH, EN 300.440, EN 300 328, EN 301 489-1, KN32, KN35, EN 301 893, IEC/EN/UL 60950-1, EN 55032, EN 301 489-3, IEC/EN/UL 62368-1, EN 301 489-17, ARPANSA, AS/NZS CISPR 32, VCCI 32
Networking
Ethernet Ports 2.5 Gigabit Ethernet
Ethernet Controller Intel I225-LM
Wireless LAN Supported Yes
Wireless NIC Intel Wi-Fi 6 AX 201
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.1
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1as, IEEE 802.11n, IEEE 802.11ac, IEEE 802.1BR, IEEE 802.1Qav, IEEE 802.3bz, IEEE 802.11ax, Bluetooth 5.1, IEEE 802.1Qbv, IEEE 802.1Qbu
Dimensions & Weight
Width 4.6 in
Depth 4.4 in
Height 2.1 in
Audio Output
Sound Output Mode 7.1 channel surround
Compliant Standards High Definition Audio
Hard Drive
Type No HDD
Graphics Controller
Graphics Processor Intel Iris Xe Graphics
Video Interfaces HDMI, USB-C
Max Monitors Supported 4
Monitor
Monitor Type None.
Storage Controller
Type 1 x NVMe
Controller Interface Type PCI Express 3.0 x4 (NVMe)
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 32 F
Max Operating Temperature 104 F
General
Type PC barebone
Product Form Factor Mini PC
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Processor / Chipset
CPU Intel Core i5 (11th Gen) 1135G7
Clock Speed 2.4 GHz
Max Turbo Speed 4.2 GHz
Number of Cores Quad-Core
CPU Qty 1
Max CPU Qty 1
CPU Upgradability Not upgradable
Processor Main Features Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2, Intel 64 Technology, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Virtualization Technology with Extended Page Tables
Expansion / Connectivity
Bays 1 (total) / 1 (free) x internal 2.5"
Slots 1 (total) / 1 (free) x M.2 Card - 2280 (Key M) 1 (total) / 1 (free) x M.2 Card - 2242 (Key B) 1 (total) / 0 (free) x M.2 Card - 2230 (Key E)
Interfaces 2 x Thunderbolt/USB4 2 x HDMI 2 x LAN (Gigabit Ethernet) 3 x USB 3.2 Gen 2 - Type A (2 front, 1 rear) 3 x USB 2.0 - Type A (3 rear)
Power
Device Type Power adapter
Voltage Required DC 19 V
RAM
Installed Size 0 GB / 64 GB (max)
Technology DDR4 SDRAM
Rated Memory Speed 3200 MHz
Form Factor SO-DIMM 260-pin
Slots 2 (total) / 2 (empty)
Features Dual channel memory architecture
Optical Storage
Type No optical drive
