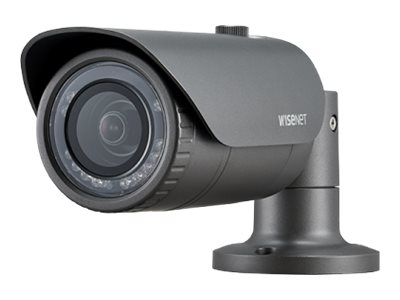

4MP IR HD+ BULLET CAMERA 6MM FIXED TRUE D/N 12VDC IP66
4MP IR HD+ BULLET CAMERA 6MM FIXED TRUE D/N 12VDC IP66
- Price:
$171.99
- Availability:
- Mfr #: HCO-7030RA
- UNSPSC #: 46171610
- Item #: 009166748
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | Composite video, AHD |
Miscellaneous
| Compliant Standards | Plug and Play, IK10, IP66 |
| Color | Dark gray |
Lens Construction
| Type | Fixed focal |
| Focal Length | 6 mm |
| Lens Iris | F/2.0 |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 49.01 |
| Vertical Field of View (degree) | 27.61 |
| Diagonal Field of View (degree) | 55.6 |
Image Sensor
| Type | 4 MP CMOS 1/3" |
| Effective Pixels | 2688 x 1520 |
Environmental Parameters
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% RH |
General
| Device Type | Surveillance camera |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 2.8 in |
| Depth | 9.7 in |
| Height | 2.8 in |
| Weight | 23.63 oz |
Camera
| Type | Color - Day&Night - fixed |
| Max Digital Video Resolution | 2560 x 1440 |
| Motion Detection | Yes |
| Exposure Range | 1/30 sec - 1/12000 sec |
| Minimum Illumination | 0.27 lux - color - F2.0 ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Frame Rate (max) | 30 frames per second |
| Features | Backlight Compensation (BLC), Highlight Compensation (HLC), Digital Wide Dynamic Range (D-WDR), auto white balance, Motion Detection Technology, Privacy Mask Function, 2D Digital Noise Reduction Technology, auto gain control |
Expansion / Connectivity
| Ports | AHD - BNC ¦ Composite video |
Power
| Power Requirements | DC 12 V |
| Power Device | 5 Watt |
