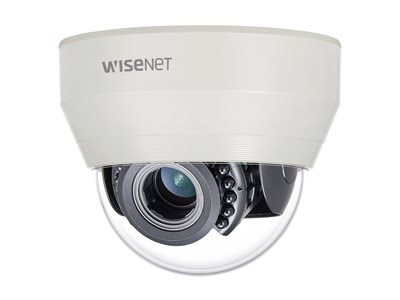

4MP IR HD+ INDOOR DOME CAMERA 3.1X V/F TRUE D/N 24VAC/12VDC
4MP IR HD+ INDOOR DOME CAMERA 3.1X V/F TRUE D/N 24VAC/12VDC
- Price:
$231.99
- Availability:
- Mfr #: HCD-7070RA
- UNSPSC #: 46171610
- Item #: 009166805
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Video | Composite video, AHD |
| Alarm Outputs Qty | 1 |
Miscellaneous
| Compliant Standards | Plug and Play |
| Color | Ivory |
Lens Construction
| Type | Vari-focal |
| Optical Zoom | 3.1 x |
| Focal Length | 3.2 mm - 10 mm |
| Lens Iris | F/1.6 auto iris (DC) |
| Focus Adjustment | Manual |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 29.44 - 93.48 |
| Vertical Field of View (degree) | 16.64 - 50.47 |
| Diagonal Field of View (degree) | 33.7 - 112.53 |
Tilting
| Range (degree) | 0 to 63 |
Image Sensor
| Type | 4 MP CMOS 1/3" |
| Effective Pixels | 2688 x 1520 |
Environmental Parameters
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% |
General
| Device Type | Surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 4.7 in |
| Depth | 4.7 in |
| Height | 3.9 in |
| Weight | 11.29 oz |
Camera
| Type | Color - Day&Night - fixed |
| Max Digital Video Resolution | 2560 x 1440 |
| Motion Detection | Yes |
| Exposure Range | 1/30 sec - 1/12000 sec |
| Minimum Illumination | 0.16 lux - color - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 66 ft |
| Video Capture | 2560 x 1440 @ 30 fps |
| Features | Backlight Compensation (BLC), Motion Detection Technology, Privacy Mask Function, Highlight Compensation (HLC), auto gain control, auto white balance, plastic housing, 2D Digital Noise Reduction Technology |
Panning
| Range (degree) | 0 to 350 |
Expansion / Connectivity
| Ports | AHD - BNC ¦ Composite video |
Power
| Power Requirements | DC 12 V / AC 24 V |
| Power Device | 5.8 Watt |
