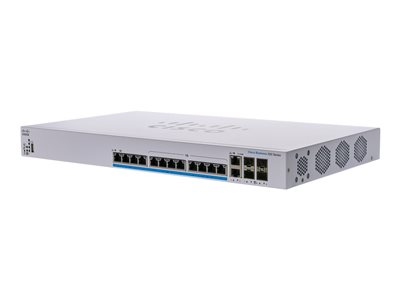

Cisco Business 350 Series 350-12NP-4X - switch - 12 ports - managed - rack-mountable
Cisco Business 350 Series 350-12NP-4X - switch - 12 ports - managed - rack-mountable
- Price:
$2,314.99
- Availability:
- Mfr #: CBS350-12NP-4X-NA
- UNSPSC #: 43222612
- Item #: 009145019
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Rack Mounting Kit | Included |
| MTBF | 553,218 hours |
| Compliant Standards | UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6 |
| Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 10.1 in |
| Height | 1.7 in |
| Weight | 9.35 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
General
| Device Type | Switch - 12 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 5 Gigabit Ethernet |
| Ports | 12 x 100/1000/2.5G/5GBase-T (PoE+) + 2 x combo 10 Gigabit SFP+/RJ-45 + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 375 W |
| Performance | Switching capacity: 200 Gbps ¦ Forwarding performance (64-byte packet size): 148.8 Mpps |
| Capacity | RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 3 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 2KB |
| Max Units In A Stack | 4 |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, QoS, DHCP server, DAI, PVST+, reset button, STP Root Guard, UDLD, LACP support, LLDP support, DHCP relay, MIB, MVR, GVRP, 802.1x authentication, ToS, DSCP support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, SCT, PVE, LLDP-MED, IPMB, SSD, ISATAP tunnel support, RA guard, UDP, WRR, HOL Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, LAG, VSDP, RPVST+, DAD |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
| Processor | X ARM: 800 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Status, link/activity/speed |
Expansion / Connectivity
| Interfaces | 12 x 1/2.5/5GBase-T RJ-45 4 ports (PoE+) / 8 ports (High PoE 60W) ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x console RJ-45 ¦ 2 x 10GBase-T RJ-45 uplink ¦ 1 x USB Type A |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
