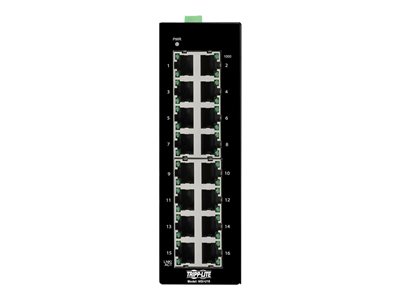

The NGI-U16 adds Gigabit Ethernet capacity to your industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. You can share large bandwidth-intensive files, such as CAD drawings and videos, improving efficiency and cutting costly downtime. The industrial-grade switch with its rugged high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Because it is an unmanaged switch, the NGI-U16 does not require configuration before use. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U16 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 2-pin 12 - 48VDC terminal block supplies power input. Device power must be supplied by LPS (Limited Power Source) circuit.
- Product Description Tripp Lite Unmanaged Industrial Gigabit Ethernet Switch 16-Port - 10/100/1000 Mbps, DIN Mount - switch - 16 ports - unmanaged - TAA Compliant
- Device Type Switch - 16 ports - unmanaged
- Ports 16 x 10/100/1000
- Performance Switching capacity: 32 Gbps
- MAC Address Table Size 8000 entries
- Jumbo Frame Support 10000 bytes
- Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), rugged, metal housing, MAC address learning
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Power DC 12 - 48 V
- Dimensions (WxDxH) 4.7 in x 1.9 in x 6.3 in
- Weight 31.74 oz
- Color Black
- TAA Compliant Yes
- Manufacturer Warranty 3-year warranty
|
