CBS350 MANAGED 8-PORT 5GE, 16-PORT GE, POE, 4X10G SFP+
  • Price:
    $2,346.99
« Back

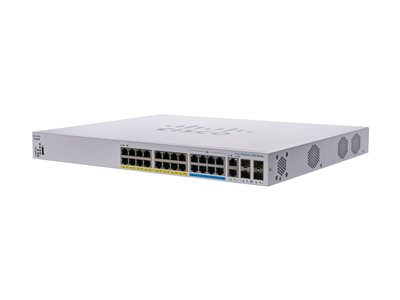

CBS350 MANAGED 8-PORT 5GE, 16-PORT GE, POE, 4X10G SFP+

CBS350 MANAGED 8-PORT 5GE, 16-PORT GE, POE, 4X10G SFP+

  • Price:
    $2,346.99
  • Availability:
  • Mfr #:  CBS350-24NGP-4X-NA
  • UNSPSC #:  43222612
  • Item #:  009145018
  • Add to Shopping List
  • cnet cat code #:  10040702
Need Help? Contact Zones Online support at 800.408.9663
Miscellaneous
Rack Mounting Kit Included
MTBF 562,415 hours
Compliant Standards USGv6, UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A
Localization Canada, Chile, Colombia, Latin America, Mexico, United States
Dimensions & Weight
Width 17.3 in
Depth 13.8 in
Height 1.7 in
Weight 11.68 lbs
Manufacturer Warranty
Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -13 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 - 90% (non-condensing)
General
Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable
Subtype 5 Gigabit Ethernet
Ports 16 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G (PoE++) + 2 x combo 10 Gigabit SFP+/RJ-45 + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 375 W
Performance Switching capacity: 192 Gbps ¦ Forwarding performance (64-byte packet size): 142.85 Mpps
Capacity RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 3
MAC Address Table Size 16K entries
Jumbo Frame Support 2KB
Max Units In A Stack 4
Routing Protocol STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, static IPv4 routing, static IPv6 routing, CIDR, policy-based routing (PBR), MLD, MLDv2
Remote Management Protocol DHCP, RSTP, RADIUS, SSH, SCP, SSH-2, HTTPS, CLI, ICMP, Telnet, TFTP, TACACS+, SNMP 1, SNMP 2c, SNMP 3, RMON, HTTP
Encryption Algorithm SSL
Authentication Method RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS, TACACS+
Features 802.1x authentication, ARP support, IPMB, IPv6 support, RA guard, SCT, DoS attack prevention, LLDP support, LLDP-MED, VSDP, VLAN support, QoS, PVST+, RPVST+, LACP support, PVE, MVR, GVRP, UDLD, HOL Blocking Prevention, loopback detection, LAG, DHCP server, UDP, BPDU Guard, STP Root Guard, DHCP snooping, IP source guard, DAI, SSD, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, DSCP support, WRR, ToS, DiffServ support, flow control, DAD, ISATAP tunnel support, SNTP support, Syslog support, DNS client, DHCP relay, MIB, dual image support, firmware upgradable, SmartPort technology, BOOTP support, cable test, reset button
Compliant Standards IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Processor X ARM: 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators Status, link/activity/speed
Expansion / Connectivity
Interfaces 16 x 10/100/1000 Base-T RJ-45 PoE++ ¦ 8 x 100/1000/2.5G/5G RJ-45 60 W ¦ 4 x 10GBase-X SFP+ uplink ¦ 2 x 10GBase-T RJ-45 uplink ¦ 1 x USB Type A ¦ 1 x console RJ-45
Power
Power Device Internal power supply
Voltage Required AC 100-240 V (50/60 Hz)
