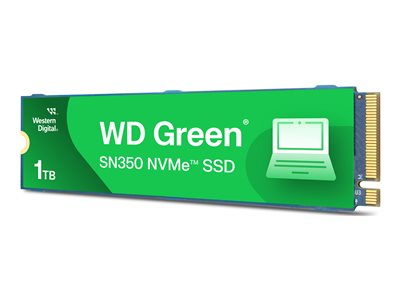

1TB WD GREEN PCIE GEN3 M.2
1TB WD GREEN PCIE GEN3 M.2
- Price:
$84.99
- Availability:
- Mfr #: WDS100T3G0C
- UNSPSC #: 43201404
- Item #: 009410585
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | UL, TUV, VCCI, BSMI, FCC, KCC, RCM, Morocco, CAN ICES-3(B)/NMB3(B) |
Software & System Requirements
| Software Included | WD SSD Dashboard |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine |
| Vibration Tolerance (operating) | 5 g @ 10-2000 Hz |
| Vibration Tolerance (non-operating) | 4.9 g @ 7-800 Hz |
General
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| NAND Flash Memory Type | Quad-level cell (QLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Weight | 0.26 oz |
Expansion & Connectivity
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) - M.2 Card |
| Compatible Bay | M.2 2280 |
Performance
| SSD Endurance | 100 TB |
| Internal Data Rate | 3200 MBps (read) / 2500 MBps (write) |
| Maximum 4KB Random Write | 400000 IOPS |
| Maximum 4KB Random Read | 300000 IOPS |
Reliability
| MTBF | 1,000,000 hours |
Power
| Power Consumption | 110 mW (active) ¦ 25 mW (low power active) ¦ 5 mW (sleep) ¦ 5 Watt (maximum) |
