NCS 540 Series 24x1/10GE, 8x10/25GE, 2x1

Need Help? Contact Zones Online support at 800.408.9663

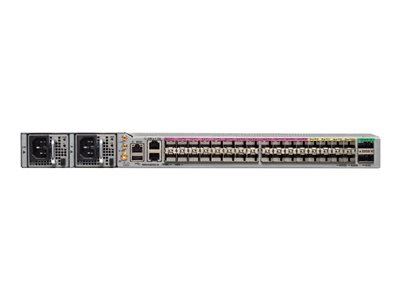

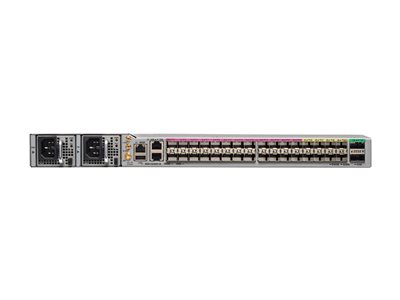

Product Description Cisco Network Convergence System 540 - router - rack-mountable
Device Type Router
Enclosure Type Front to back airflow rack-mountable - 1U
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
Performance Performance: up to 300 Mpps � Latency: 10 �s
Jumbo Frame Support 9216 bytes
Network / Transport Protocol RSVP, DHCP, IPv4, IPv6
Routing Protocol OSPF, BGP, VRRP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, ECMP, MLDv2, IS-ISv6, MPLS, mLDP
Remote Management Protocol SNMP, NETCONF, JSON, YANG, GPB, XML
Features Layer 3 switching, layer 2 switching, WRED, STP support, BFD, LACP, NetFlow, GRE, VOQ, 3GB packet buffer, LDP, iPXE, FFR, AAA, HQoS, L2VPN support, ZTP, IS-IS, 3+1 redundant fans, SPAN, SR-TE, MPLS OAM, IRB, ERSPAN, LFA, LAG, BVI, EFP, BGP-LU, BGP, TI-LFA
Compliant Standards IEEE 802.1Q, IEEE 802.1ad, MEF 3.0
Dimensions (WxDxH) 17.3 in x 10.1 in x 1.7 in
Weight 13.01 lbs
Manufacturer Warranty 1-year warranty
