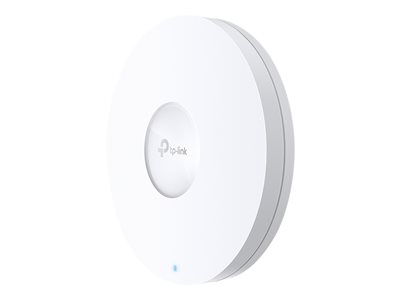

AX1800 CEILING MOUNT WI-FI 6 ACCESS POINT
AX1800 CEILING MOUNT WI-FI 6 ACCESS POINT
- Price:
$101.99
- Availability:
- Mfr #: EAP610
- UNSPSC #: 43222631
- Item #: 009485115
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Wall/ceiling mounting kit |
| Compliant Standards | FCC, RoHS |
Networking
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Spread Spectrum Method | OFDMA |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps |
| Capacity | Maximum number of configured SSIDs: 16 |
| Wi-Fi Rating | AX1800 |
| Status Indicators | Status |
| Features | VLAN support, Syslog support, E-mail alert, MAC address filtering, Mesh networking, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), reset button, rogue access point detection, Captive Portal, Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, band steering, rate limit, Wireless Scheduler, Software Defined Networking (SDN), LED on/off button, Fast Roaming, seamless roaming, Airtime Fairness, schedule reboot, load balance network mode, Guest Network |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Device Type | Wireless access point |
| Width | 9.6 in |
| Depth | 9.6 in |
| Height | 2.5 in |
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 |
Power
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
Antenna
| Antenna | Internal |
| Directivity | Omni-directional |
Software / System Requirements
| OS Required | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 |
