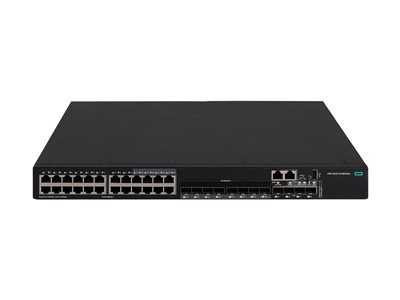

- Product Description HPE FlexNetwork 5520 24G 4SFP+ HI 1-slot Switch - switch - 24 ports - managed - rack-mountable
- Device Type Switch - 24 ports - L3 - managed - stackable
- Enclosure Type Side to back airflow rack-mountable 1U
- Subtype 10 Gigabit Ethernet
- Ports 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
- Performance Latency (1000 Mbps): 5 µs ¦ Latency (10 Gbps): 3 µs ¦ Throughput: 180 Mbps ¦ Routing/switching capacity: 288 Gbps
- Capacity IPv4 routing table entries: 32768 ¦ IPv6 routing table entries: 16384
- MAC Address Table Size 64K entries
- Jumbo Frame Support 10000 bytes
- Routing Protocol OSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, ECMP, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD), CIDR
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS
- Features Flow control, layer 3 switching, DHCP support, BOOTP support, ARP support, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, WRR queuing, IPv6 support, full duplex mode, WFQ, WRED, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, MLD snooping, DLDP support, RRPP, ECMP, BFD, STP Root Guard, IPv4 support, DWRR, LLDP support, DHCP relay, LACP, Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, port isolation, SP, GARP, 4MB packet buffer, 802.1x authentication, ToS, MACsec support, OpenFlow support, VPLS, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, proxy ARP, hot swap fan tray, LPM support, IRF Technology, BPDU protection, UDP support, MRP, WRR
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
- Power AC 100-240 V (50/60 Hz) - power supply not installed
- Dimensions (WxDxH) 17.3 in x 14.2 in x 1.7 in
- Weight 14.77 lbs
- Pricing Type CTO
- Manufacturer Warranty Limited lifetime warranty
|
