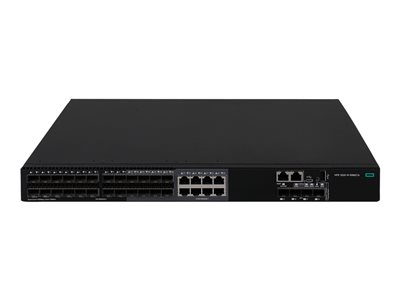

5520 24G SFP 4SFP+ HI SWCH
5520 24G SFP 4SFP+ HI SWCH
- Price:
$19,773.99
- Availability:
- Mfr #: R8M27A
- UNSPSC #: 81111812
- Item #: 009491542
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Rack Mounting Kit | Included |
| Compliant Standards | EN55024, AS/NZS 60950-1, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, EN 61000-4-29, ANSI C63.4-2009, EN 60825-2, IPv6 Ready, EN 61000-3-3:2008, EN 61000-3-2:2006+A1:2009+A2:2009, EAC, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, EMC 2004/108/EC, VCCI V-3/2013.04 Class A, CISPR 24:2010, EN 55022:2010, CISPR 22:2008, EN 300 386, FDA 21 CFR, VCCI V-3/2012.04, EN 61000-4-3:2006, CAN/CSA-C22.2 No. 60950-1, EN 61000-4-4:2012 |
| Pricing Type | CTO |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 14.2 in |
| Height | 1.7 in |
| Weight | 14.55 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
General
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Side to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x combo Gigabit SFP + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Latency (1000 Mbps): 5 µs ¦ Latency (10 Gbps): 3 µs ¦ Throughput: 180 Mbps ¦ Routing/switching capacity: 288 Gbps |
| Capacity | IPv4 routing table entries: 32768 ¦ IPv6 routing table entries: 16384 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 10000 bytes |
| Max Units In A Stack | 9 |
| Routing Protocol | OSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, ECMP, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD), CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS |
| Features | Flow control, layer 3 switching, DHCP support, BOOTP support, ARP support, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, WRR queuing, IPv6 support, full duplex mode, WFQ, WRED, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, MLD snooping, DLDP support, RRPP, ECMP, BFD, STP Root Guard, IPv4 support, DWRR, LLDP support, DHCP relay, LACP, Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, port isolation, SP, GARP, 4MB packet buffer, 802.1x authentication, ToS, MACsec support, OpenFlow support, VPLS, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, proxy ARP, WRR, hot swap fan tray, LPM support, IRF Technology, BPDU protection, UDP support, MRP |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r |
| RAM | 2 GB SDRAM |
| Flash Memory | 512 MB |
| Status Indicators | Power, system, operation mode |
Expansion / Connectivity
| Interfaces | 24 x 1000Base-T / 1000Base-X SFP ¦ 4 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x serial (console) ¦ 1 x management RJ-45 ¦ 1 x USB 2.0 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 1 (max) |
Power
| Power Device | Internal power supply (not installed) - hot-plug |
| Max Supported Qty | 2 |
| Installed Qty | 2 (max) |
| Power Provided | 2 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
